Profiles, tree segmentation and measurements from the public radar-dome project, plus the public 1.56-billion-point survey. Every report uses fictional identities and data. Select an image to view it at full size.
Profiles

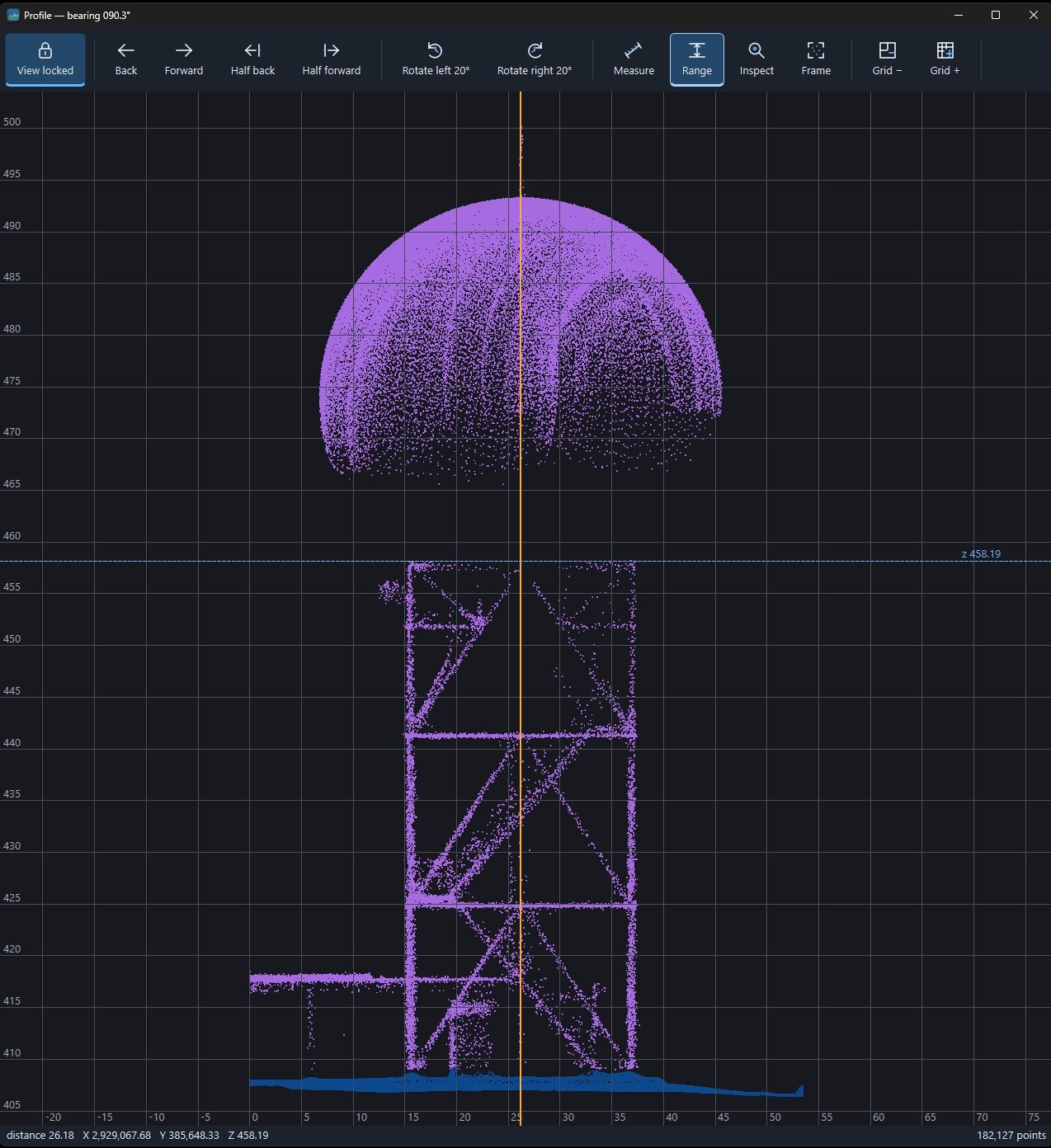

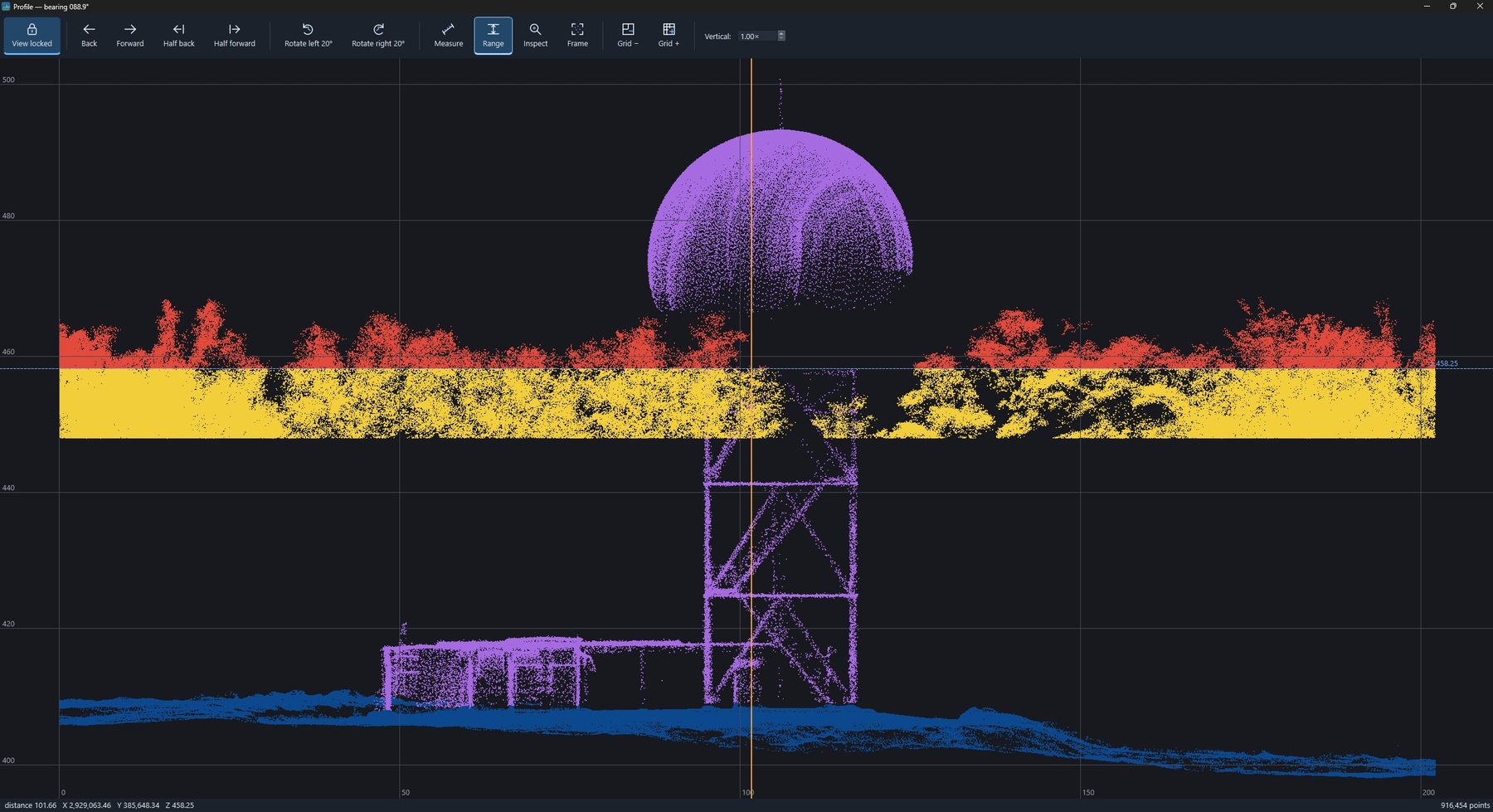

Profile at bearing 088.9°: 916,454 points through the radar dome and surrounding canopy.Profile at bearing 090.3°: 182,127 points through the dome, supporting tower and ground. The elevation line marks z 458.19.
Workspace

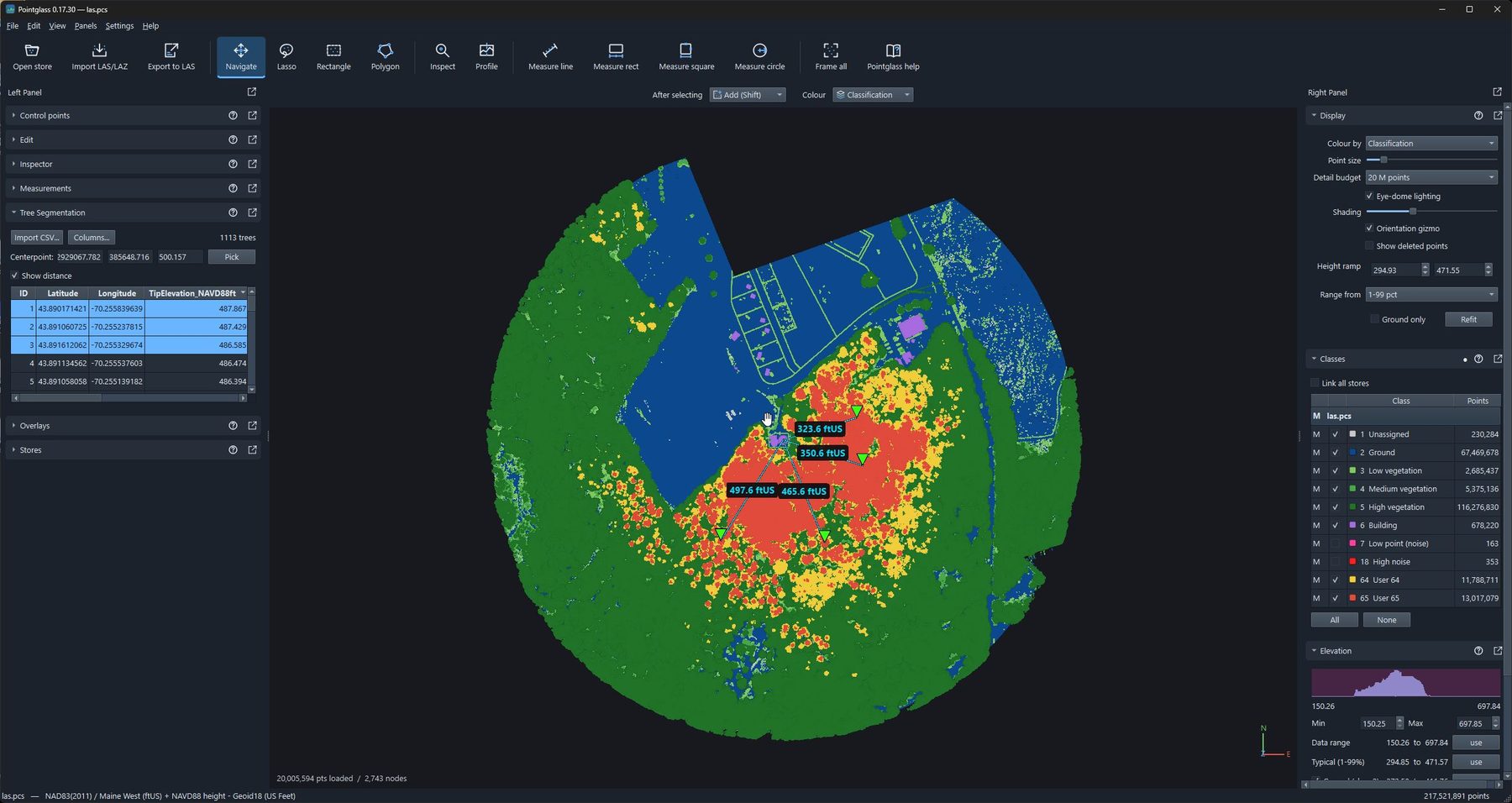

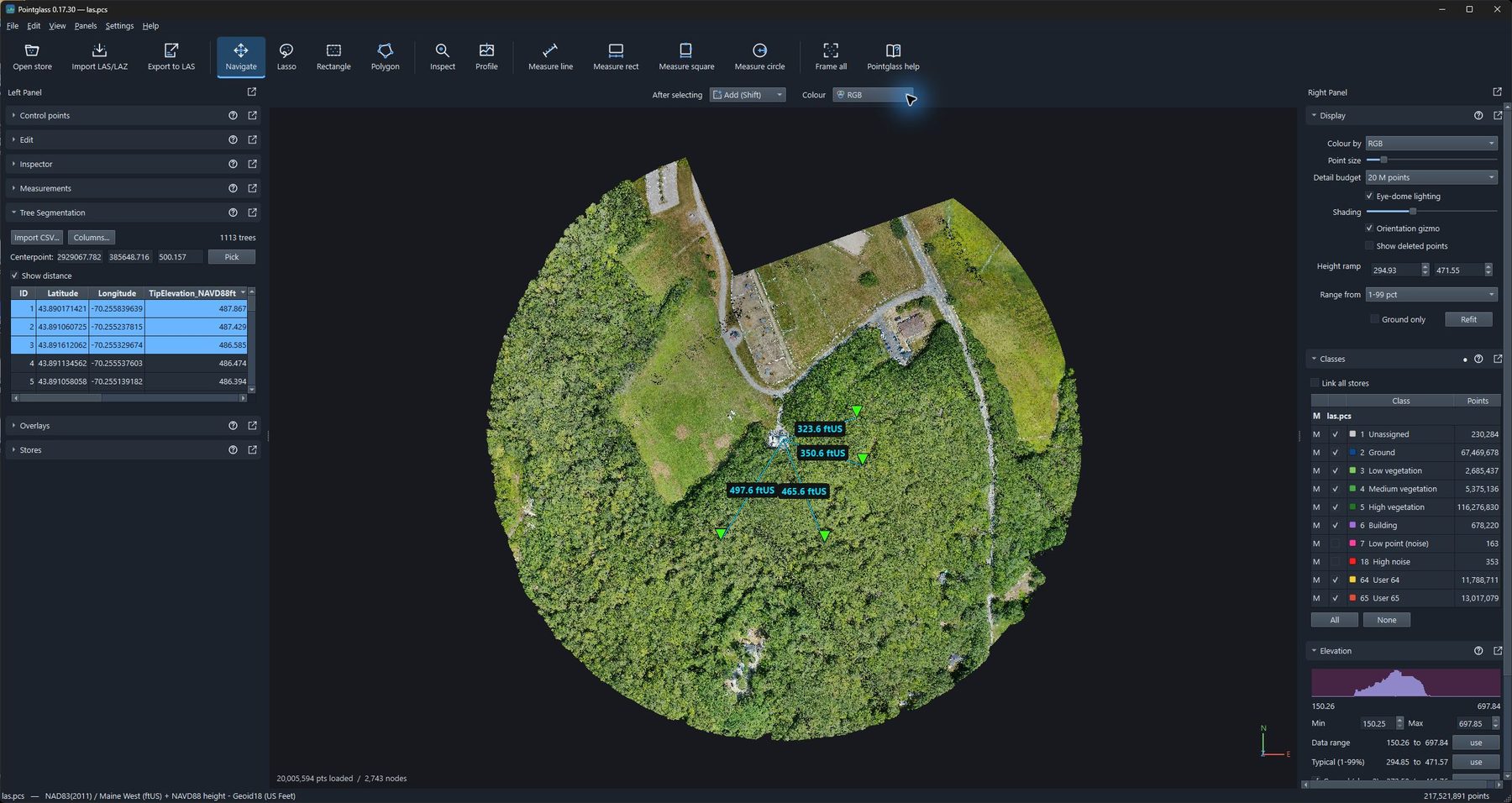

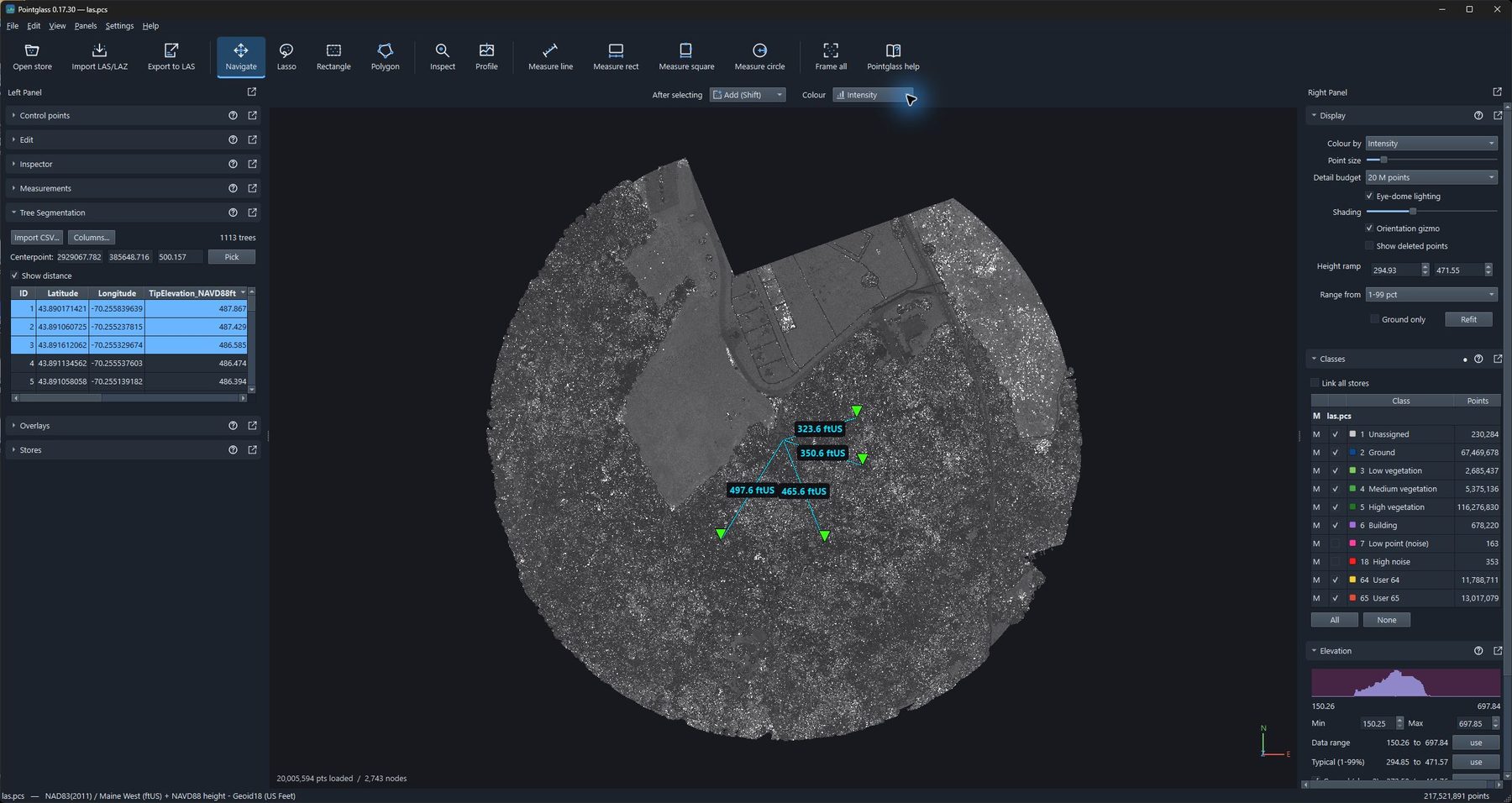

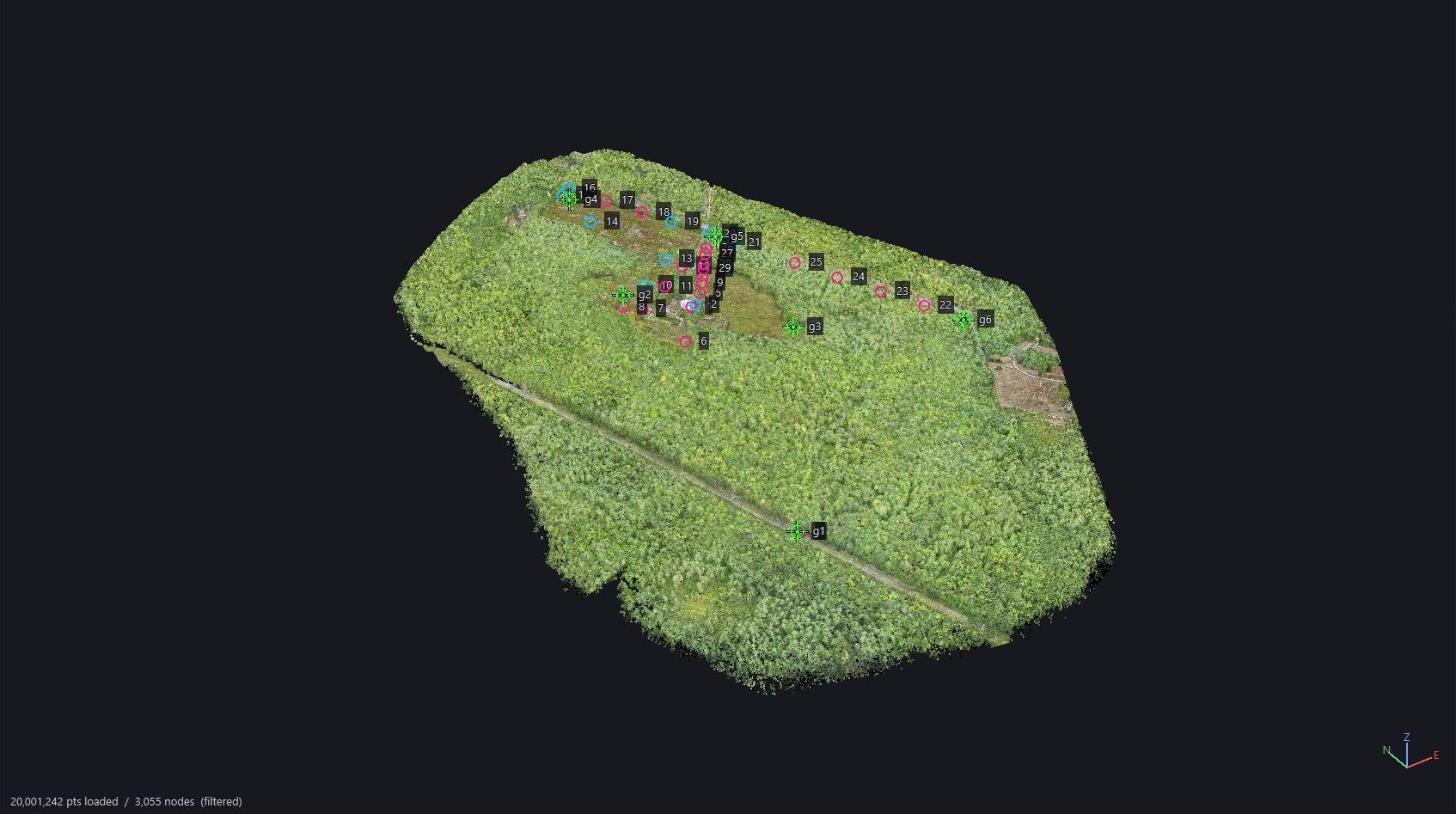

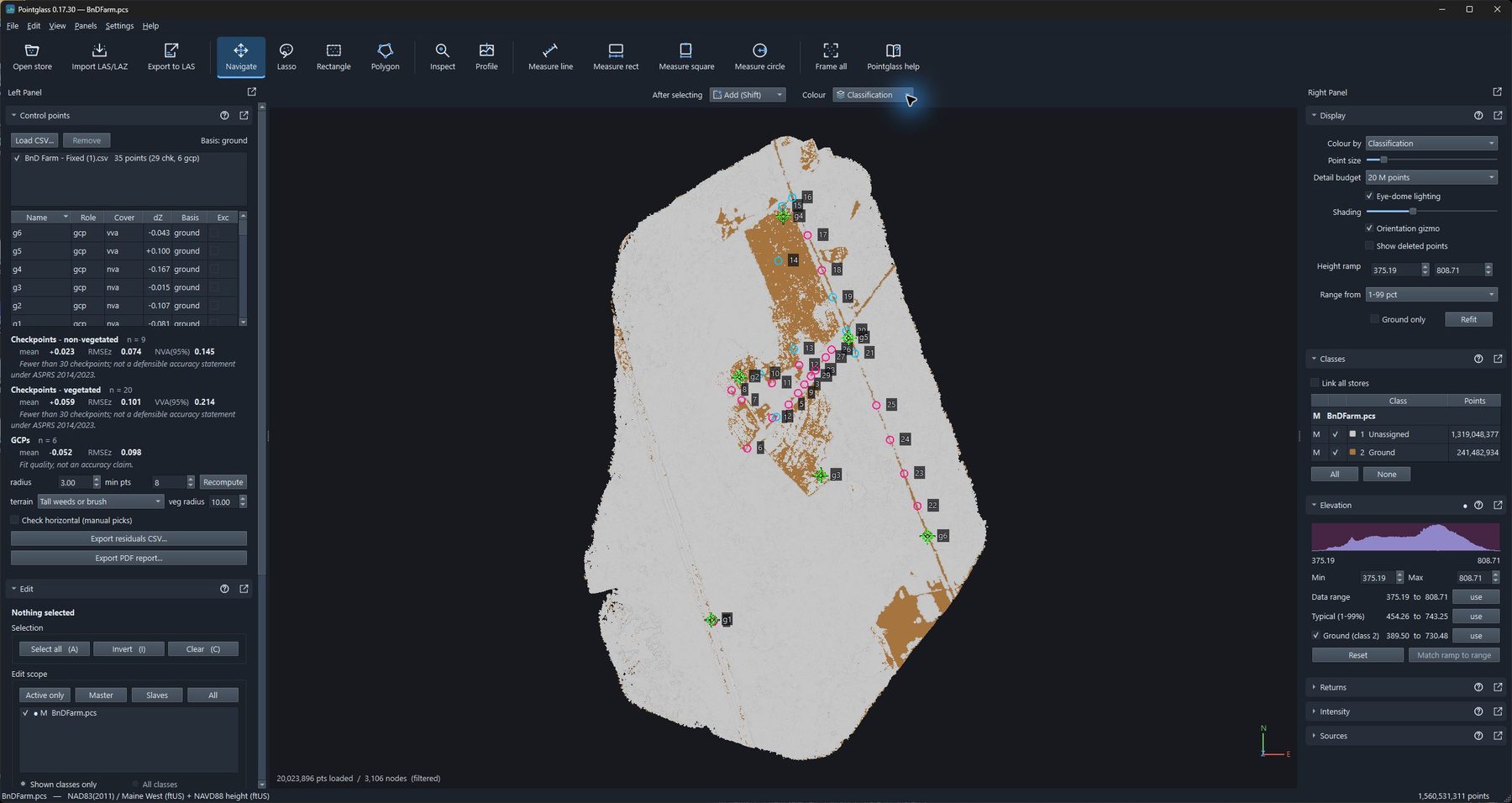

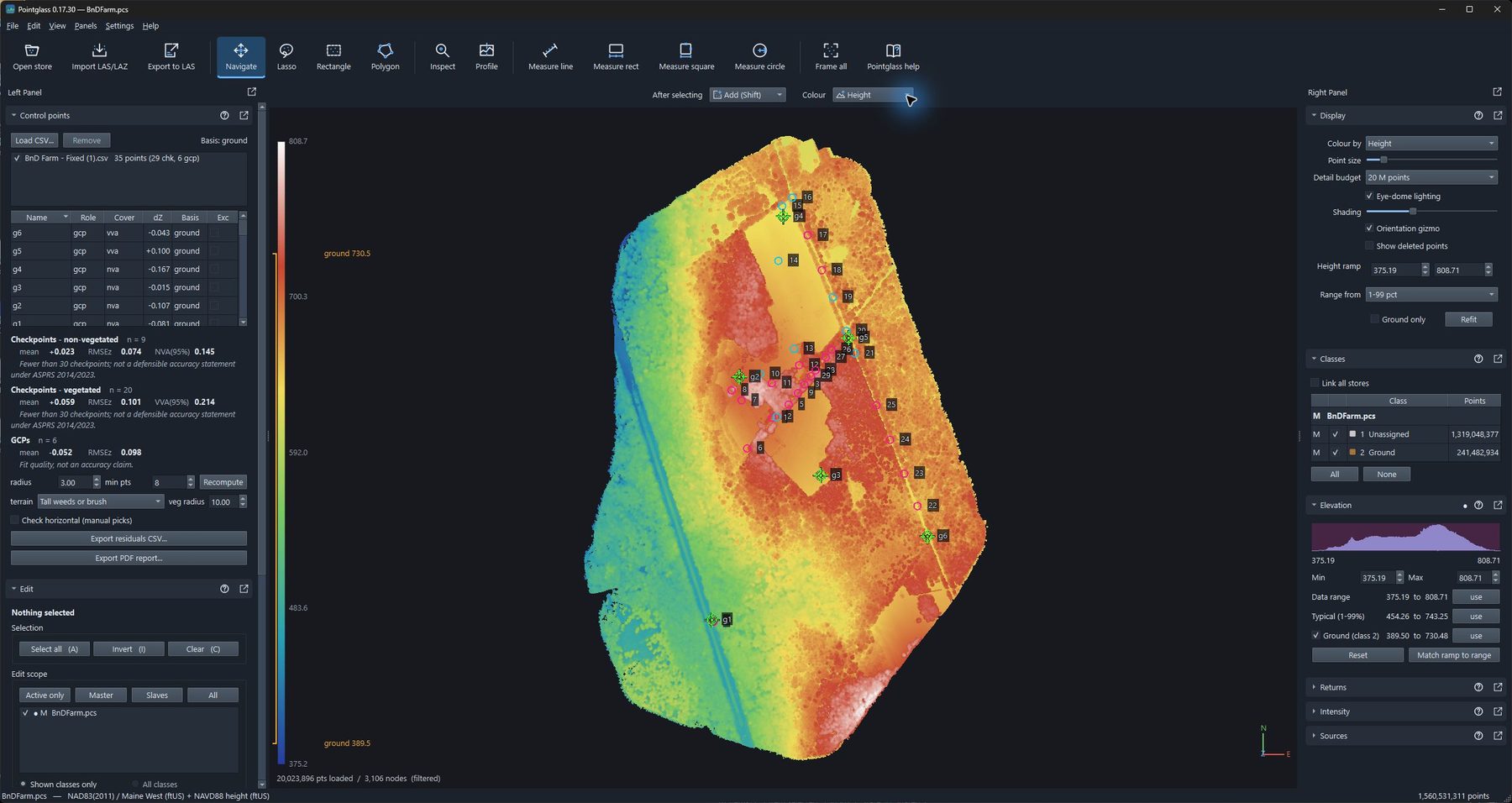

The public 1.56-billion-point survey in an isometric RGB view, with control-point markers.1,560,531,311 points: 241,482,934 ground and 1,319,048,377 unassigned.The same 1.56-billion-point store in RGB, with 35 control points.Radar-dome project in RGB: 217,521,891 points.Radar-dome project coloured by classification, with selected tree tips linked to the centrepoint.Radar-dome project shaded by return intensity.The public survey coloured by elevation, with its height legend and range controls.
Trees and measurements

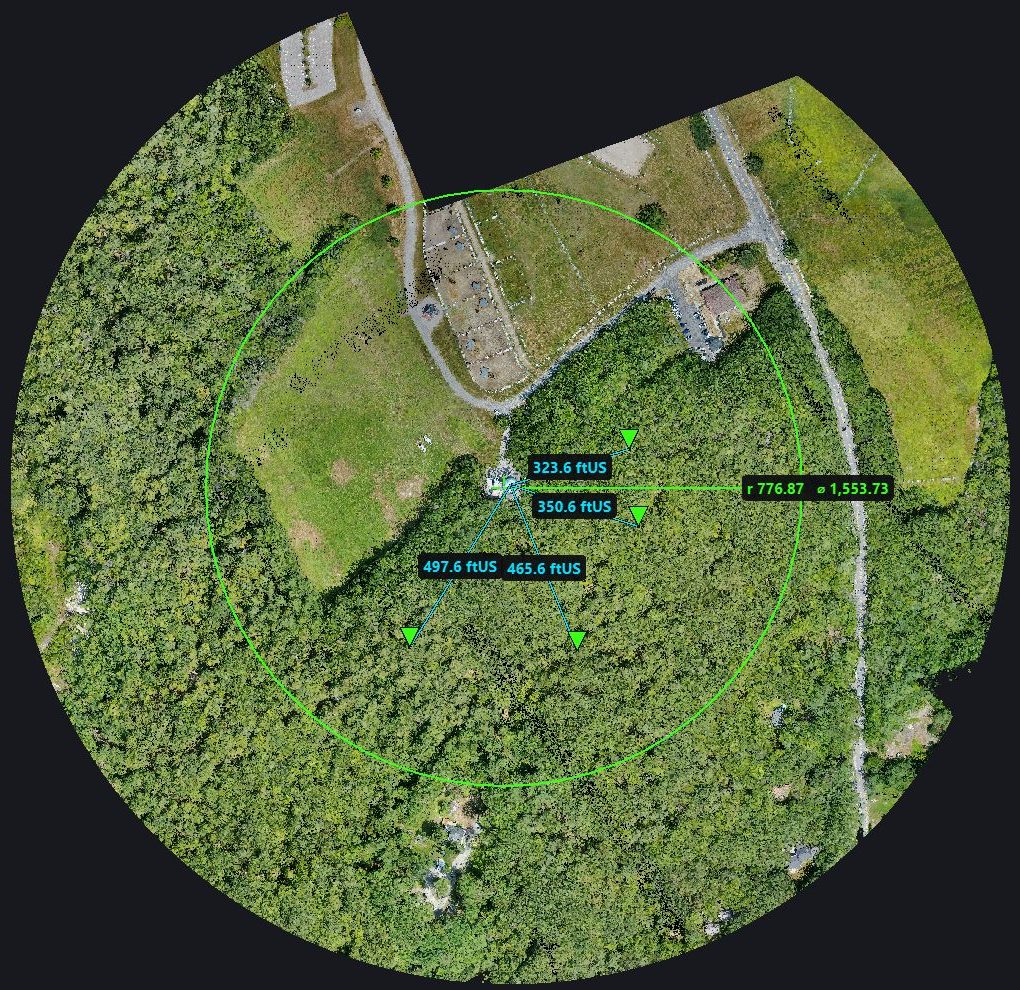

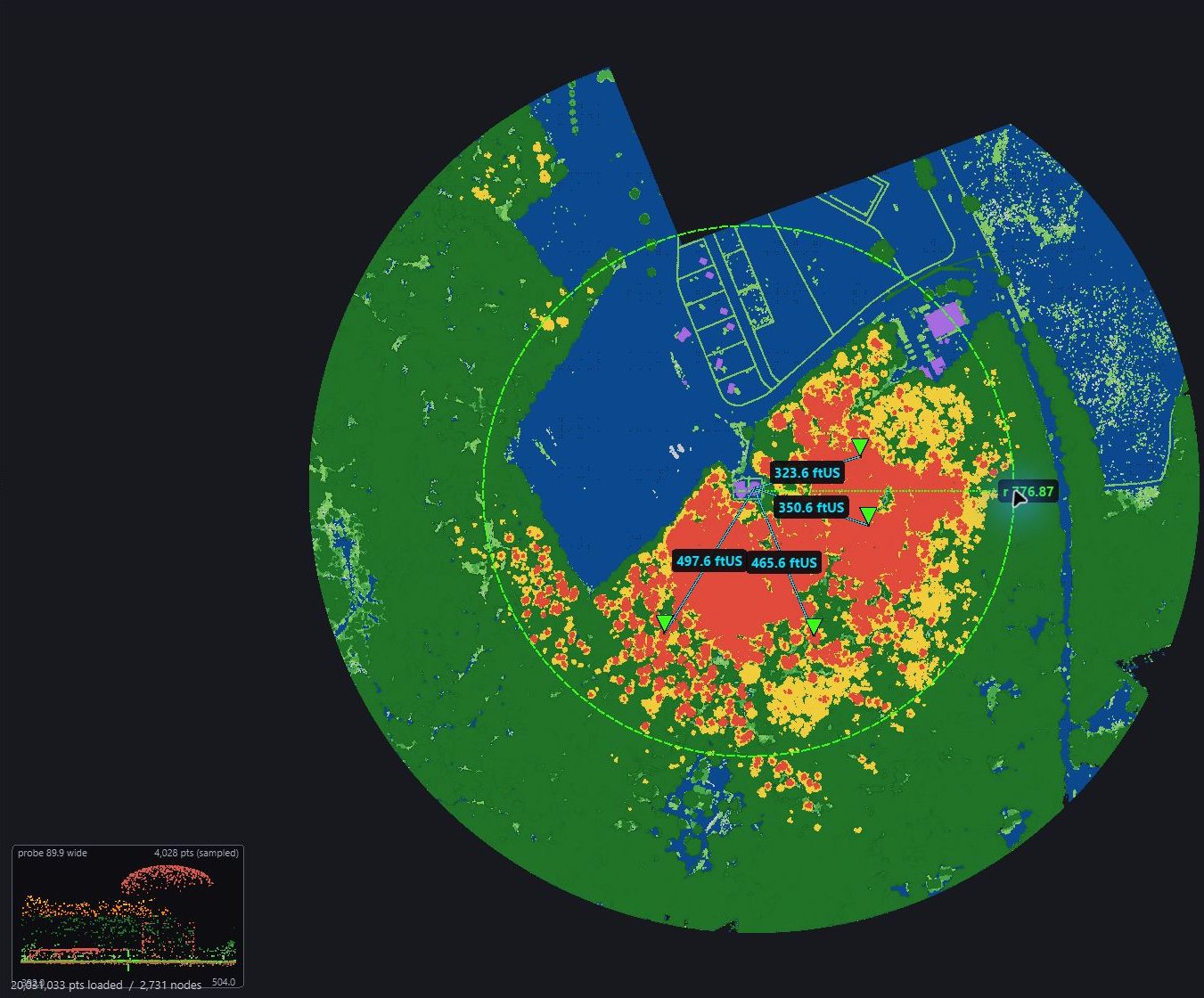

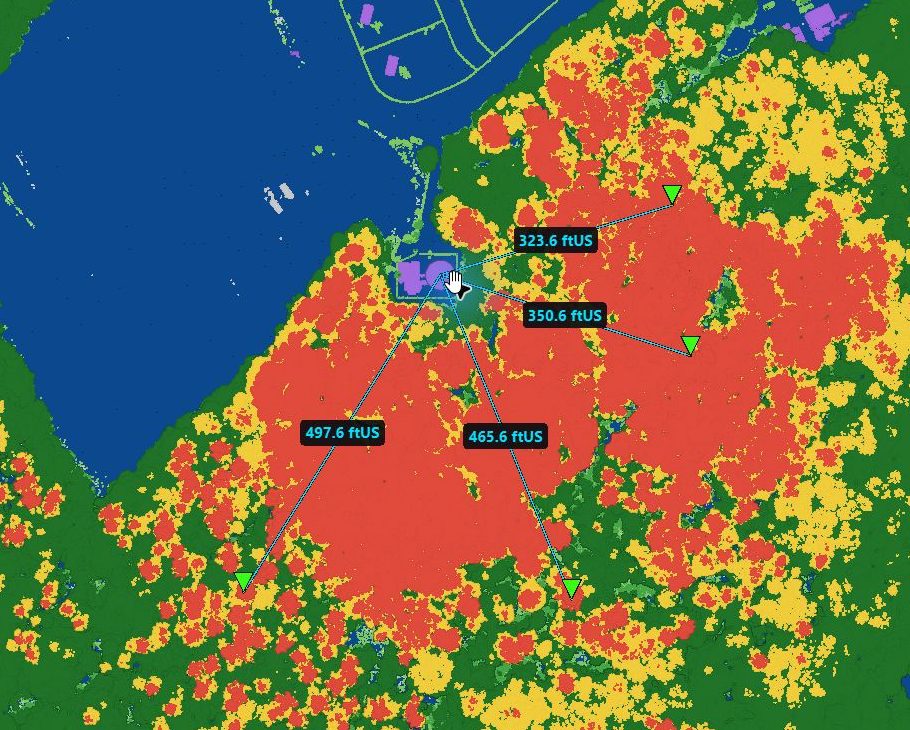

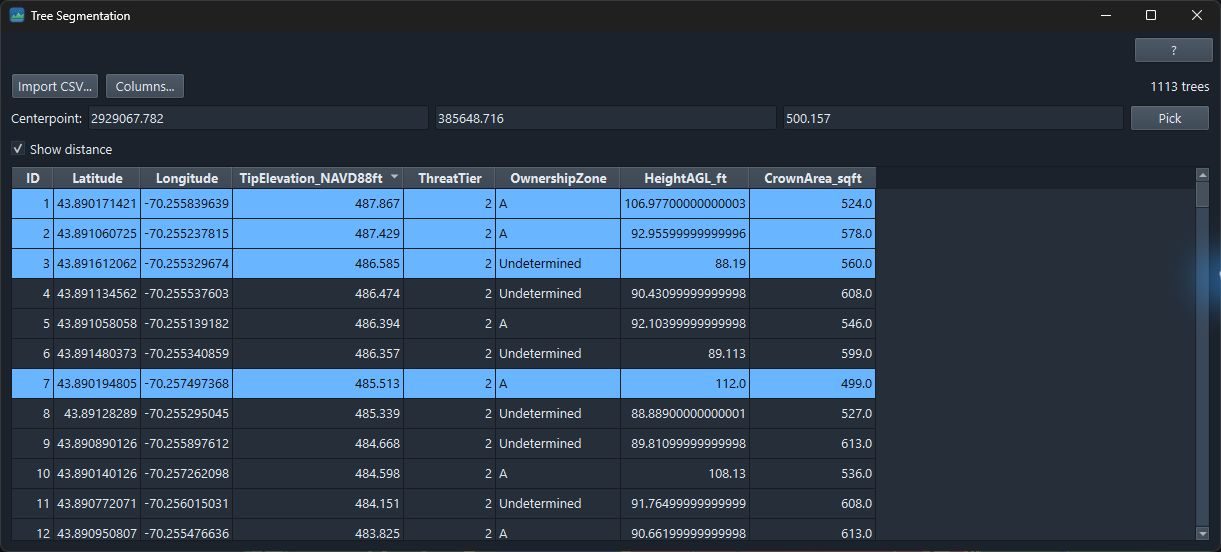

Tree Segmentation: 1,113 imported trees, tip elevation, height AGL, tier, zone and a shared centrepoint.Selected tree tips linked to the radar-dome centrepoint. Labels are 3D straight-line distances in US survey feet, including tip elevation.Live circle measurement in plan view, with an elevation probe showing the ground anchor beneath the crosshair.A committed circle over RGB: radius 776.87 and diameter 1,553.73 US survey feet.
Panels

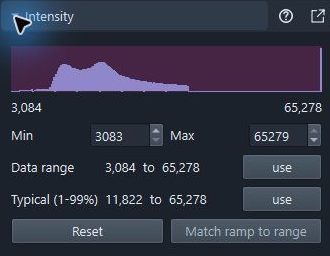

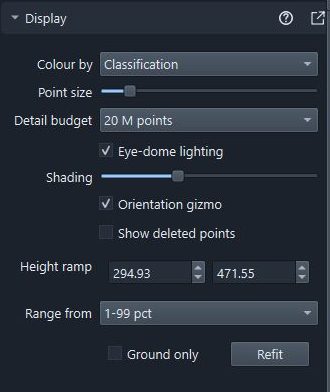

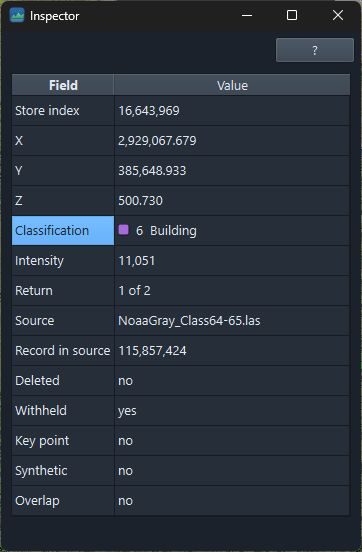

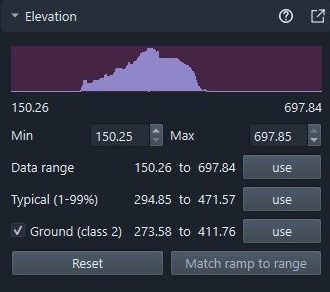

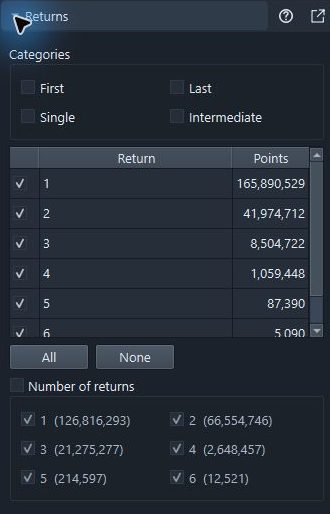

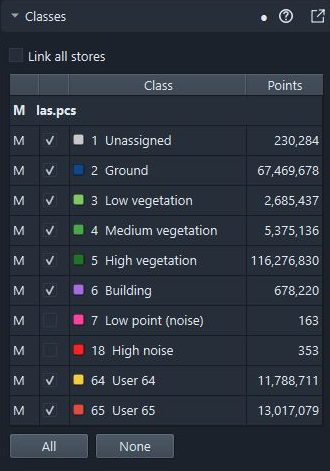

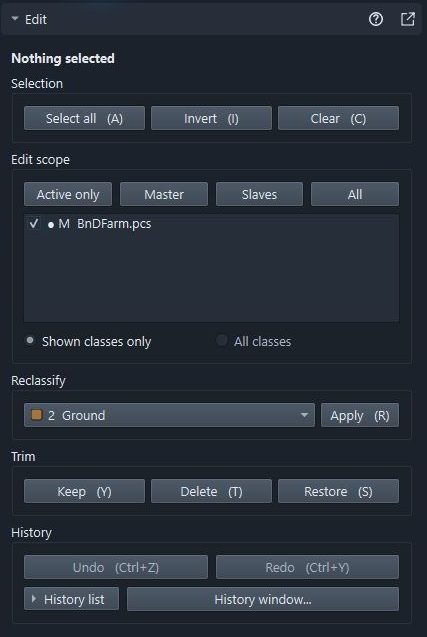

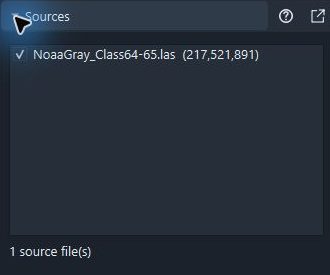

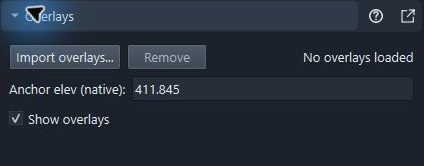

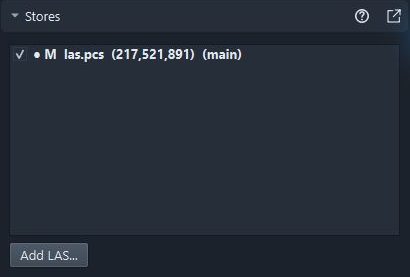

Point Inspector: coordinates, classification, intensity, return, source and flags for a picked point.Classes: per-class visibility, colour and exact point counts.Display: colour mode, point size, detail budget, eye-dome lighting, shading and the height-range rule.Elevation histogram and range filters, with low/high limits and ground-aware controls.Returns: filter first, last, single and individual return numbers.Intensity: histogram, percentile range and minimum/maximum filtering.Sources: select and filter source files within the current store.Stores: manage loaded stores and choose the active project.Overlays: import vectors, set line width and choose an anchor elevation. No overlay is loaded in this example.Edit controls for selection, reclassification, trimming and undo history.
Reports

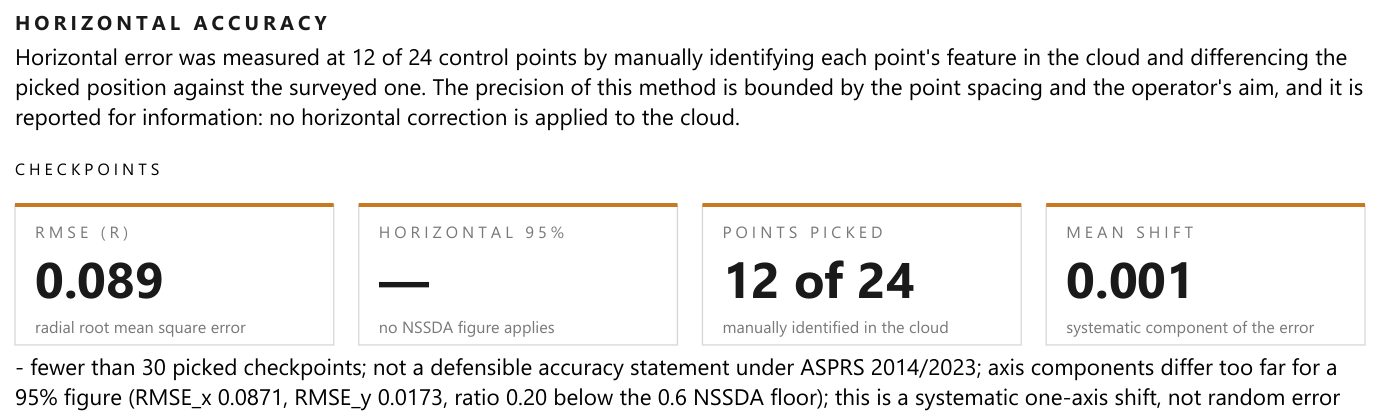

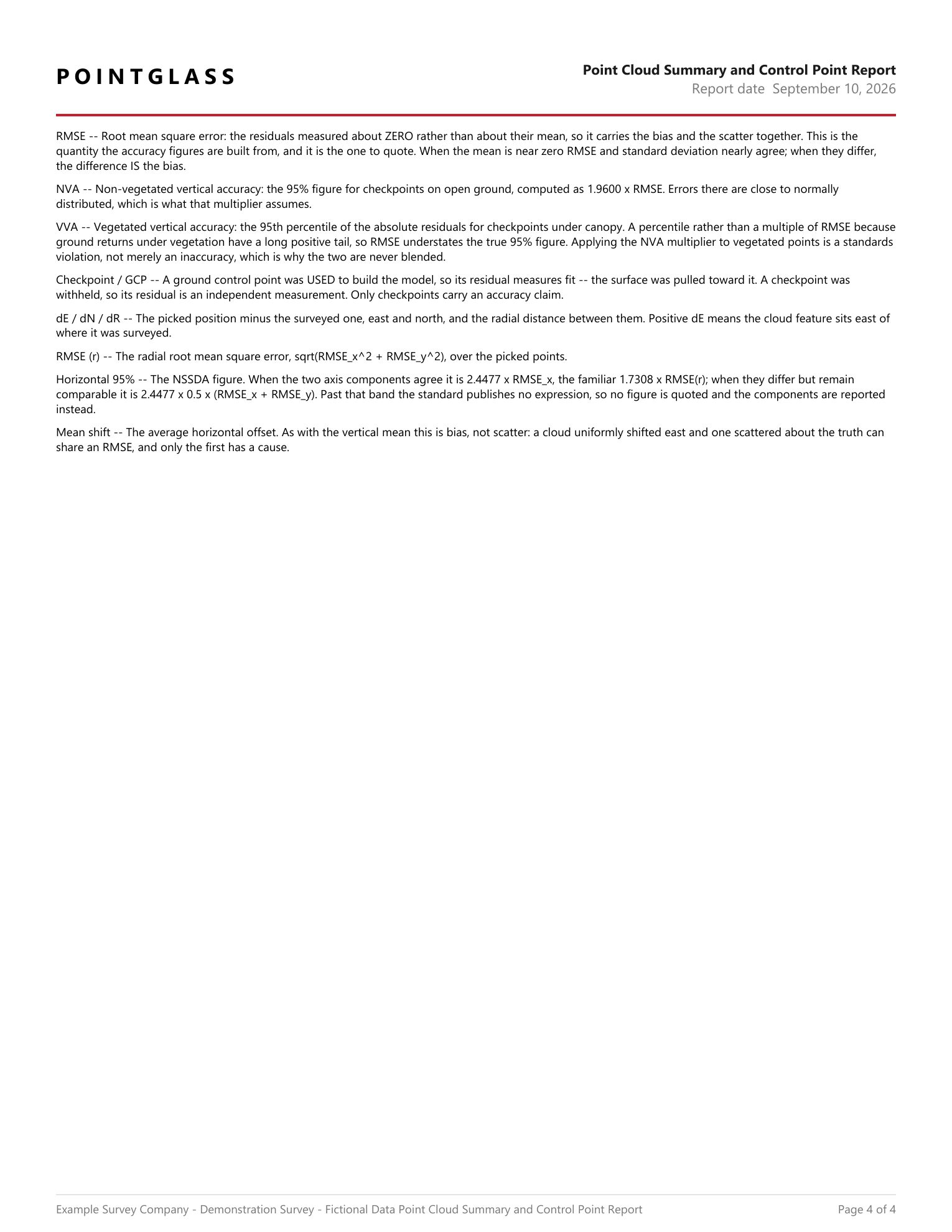

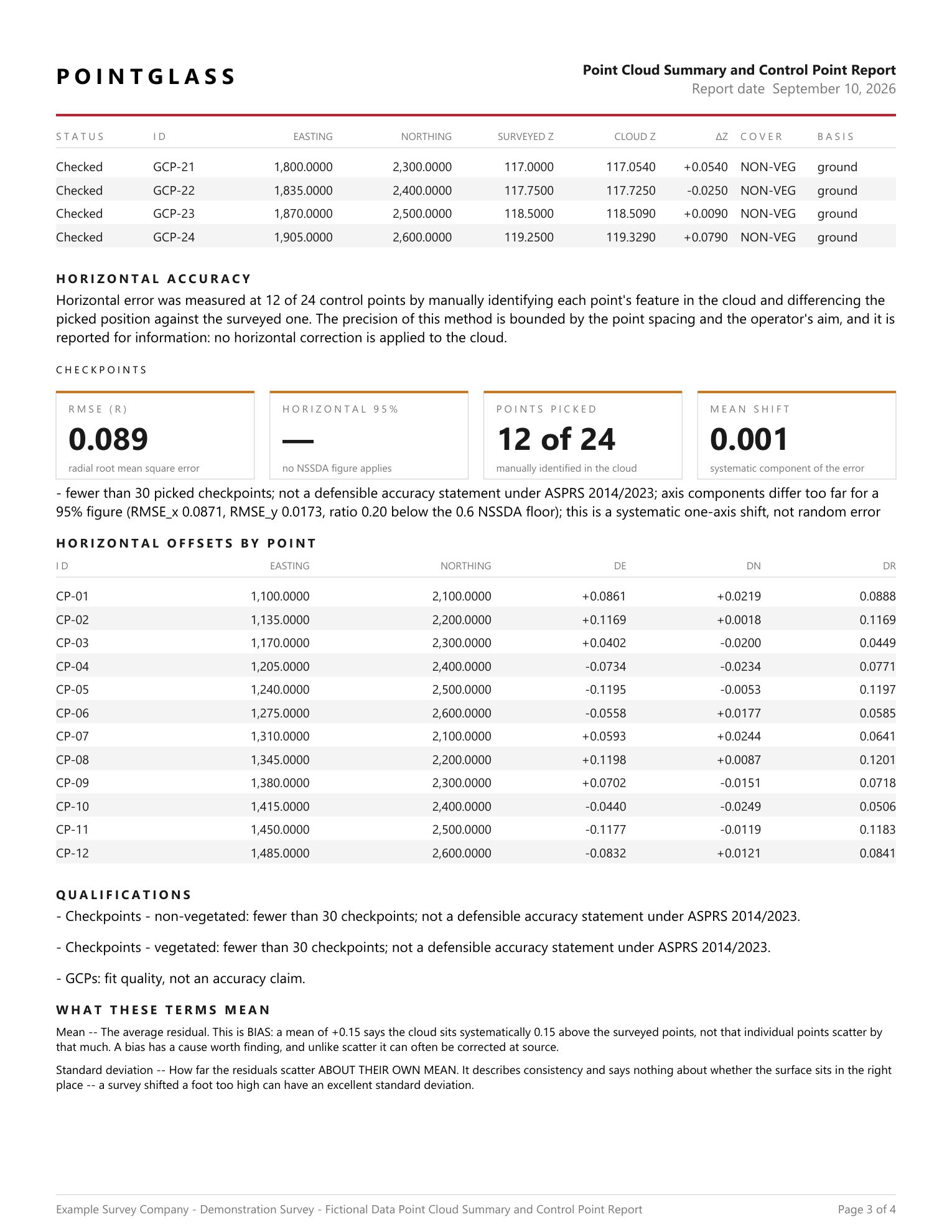

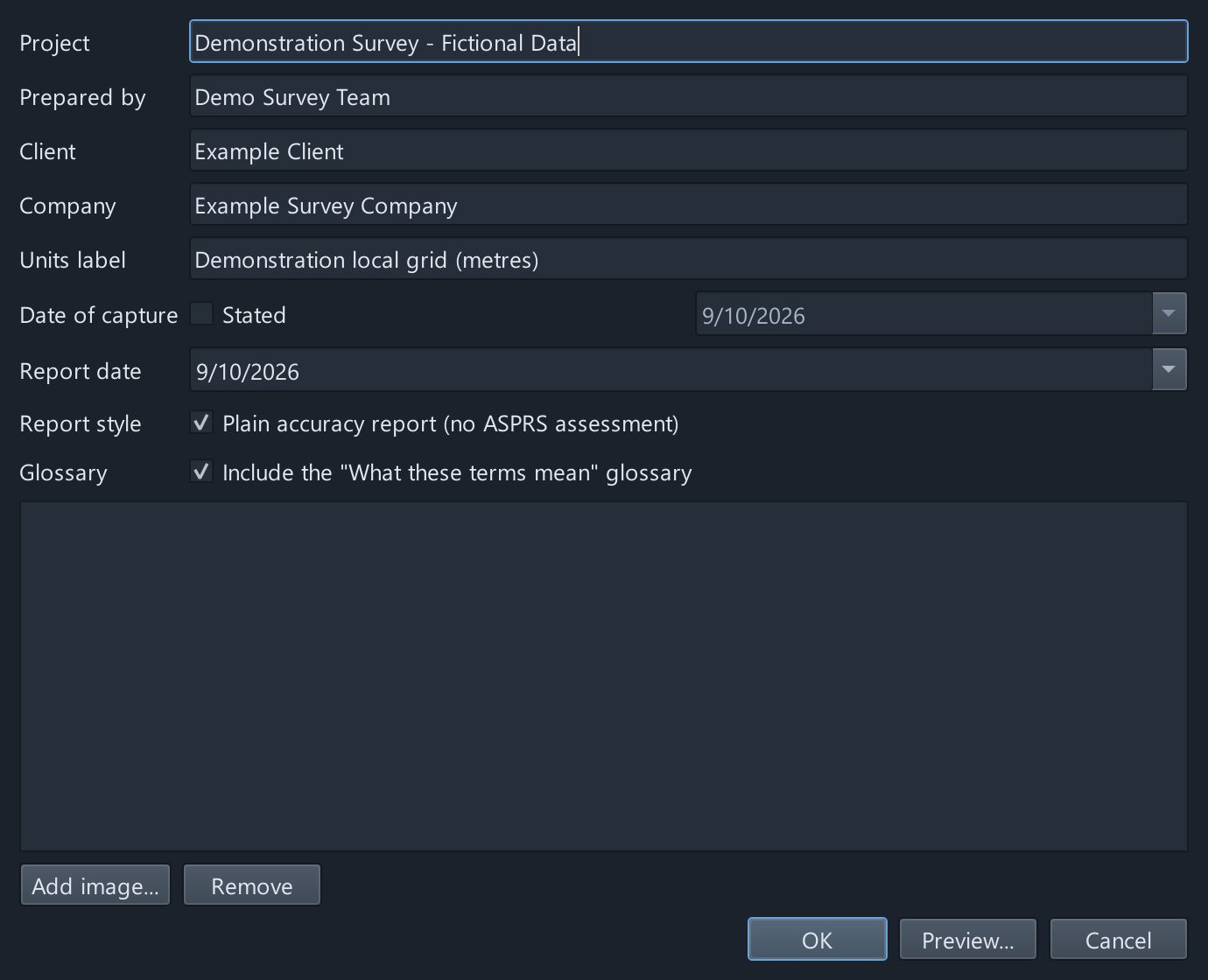

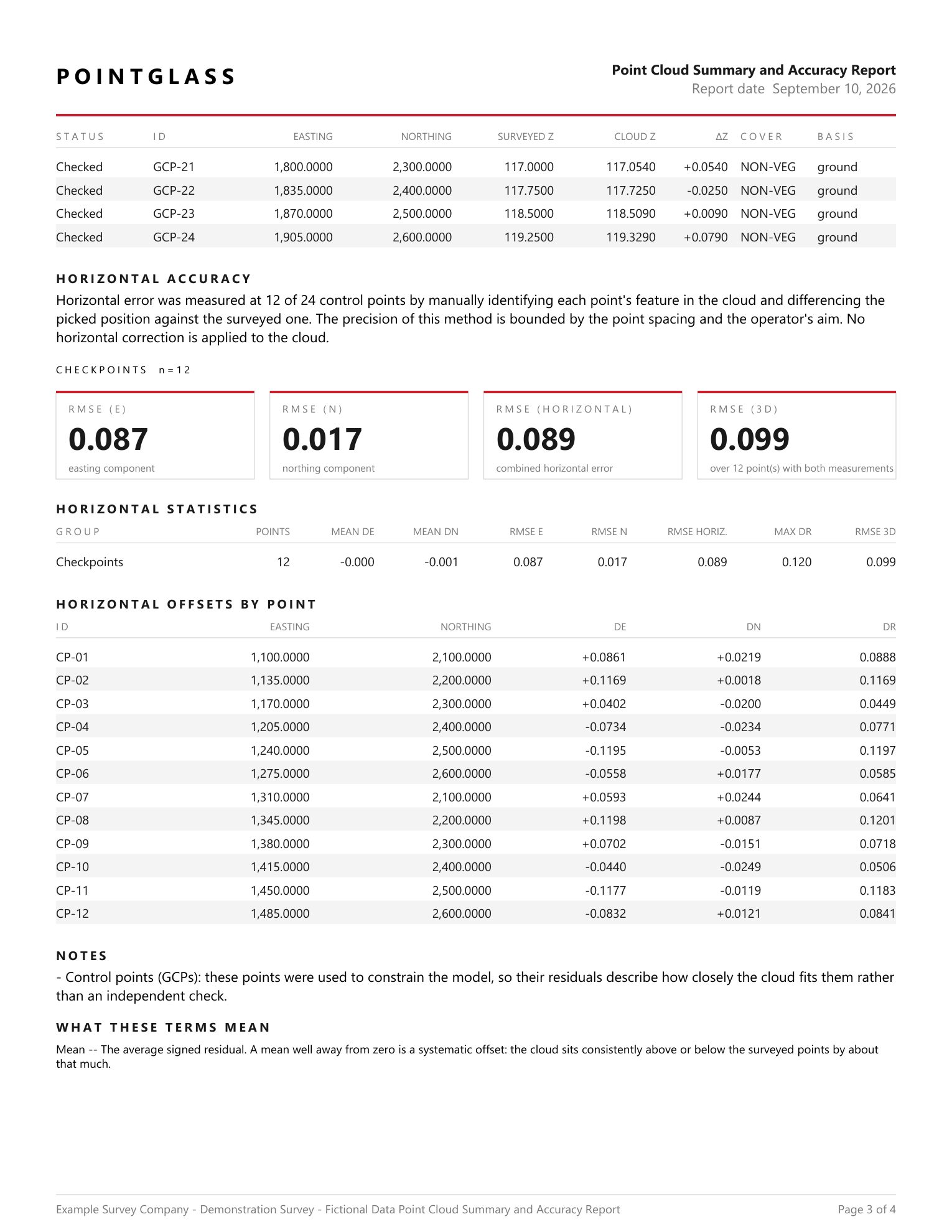

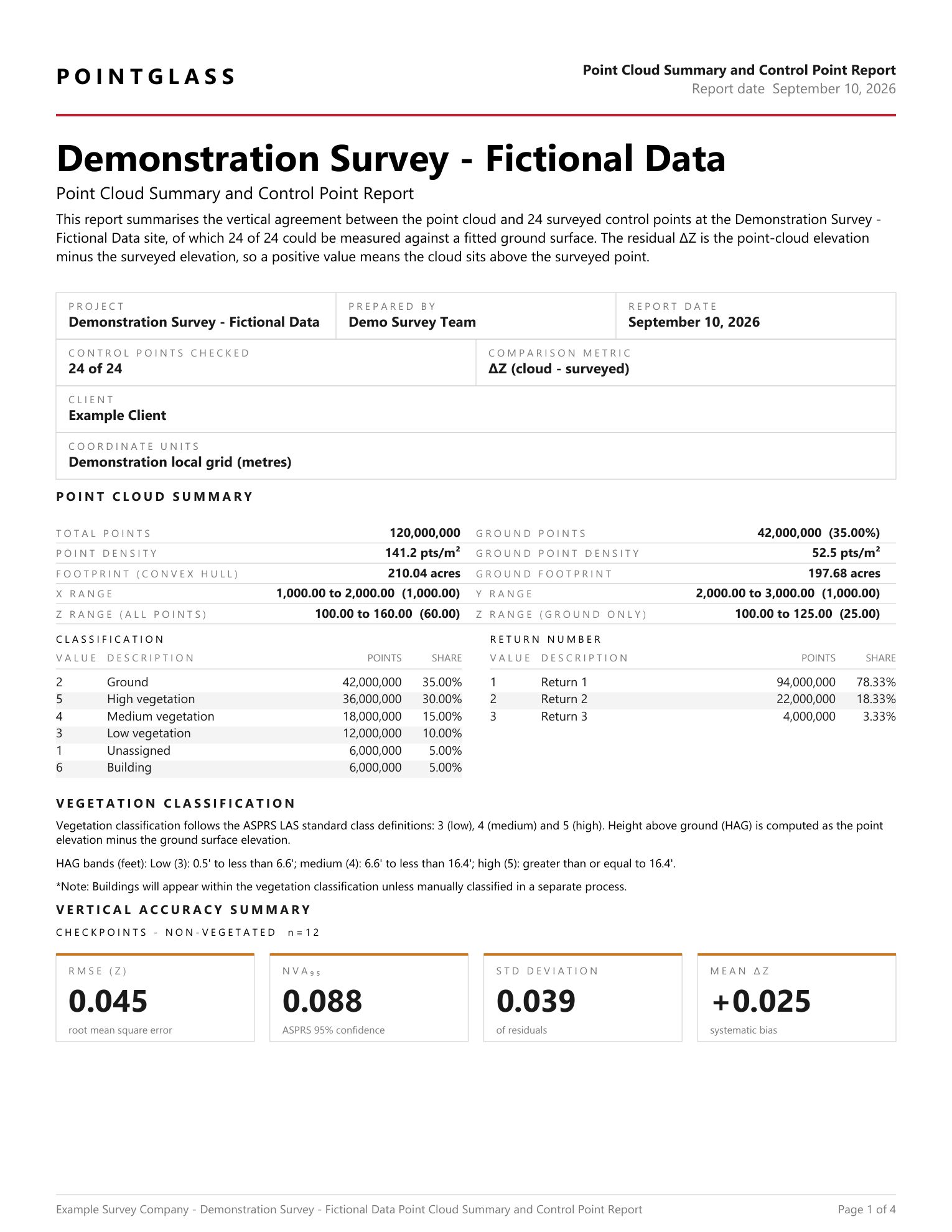

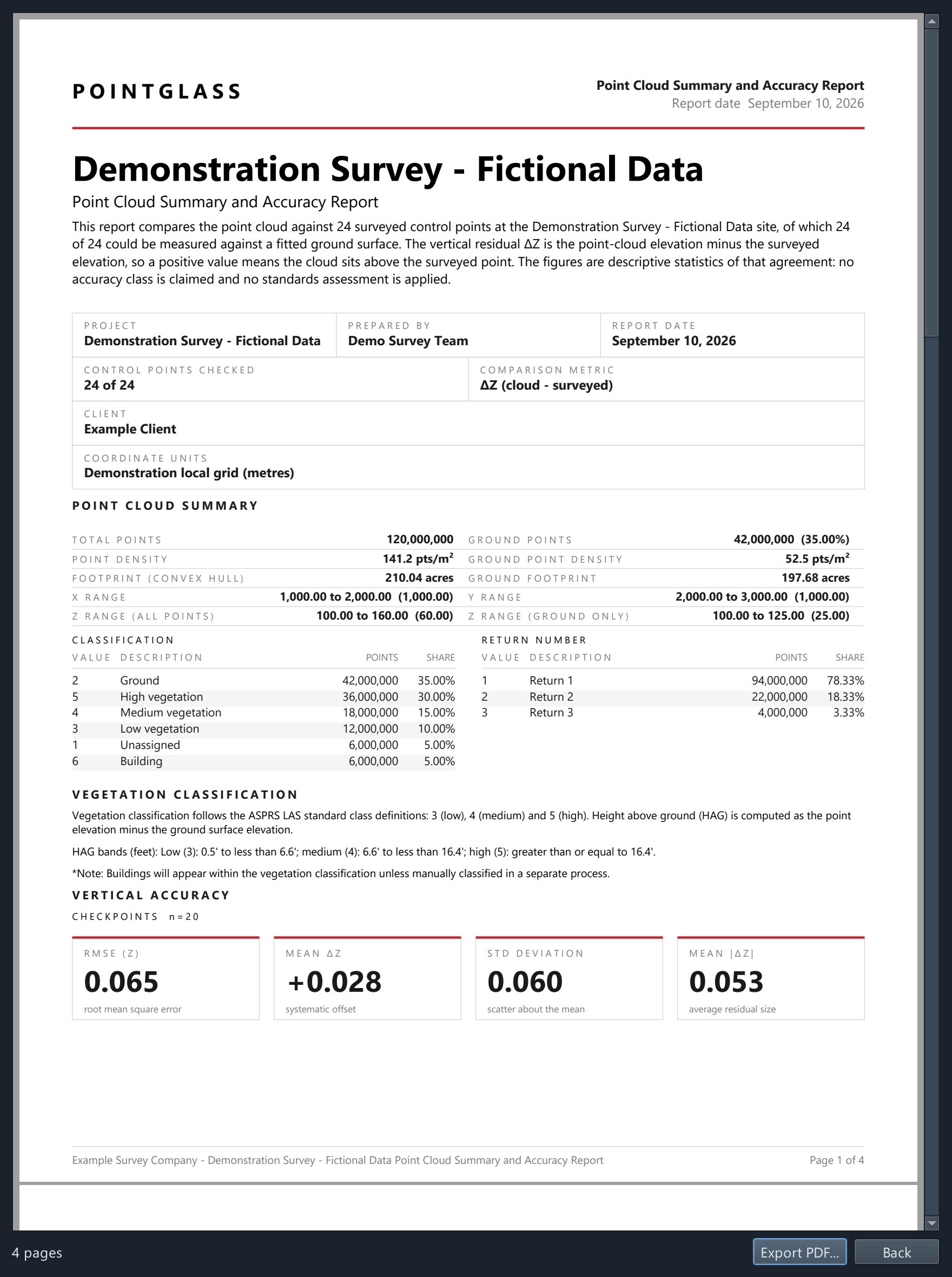

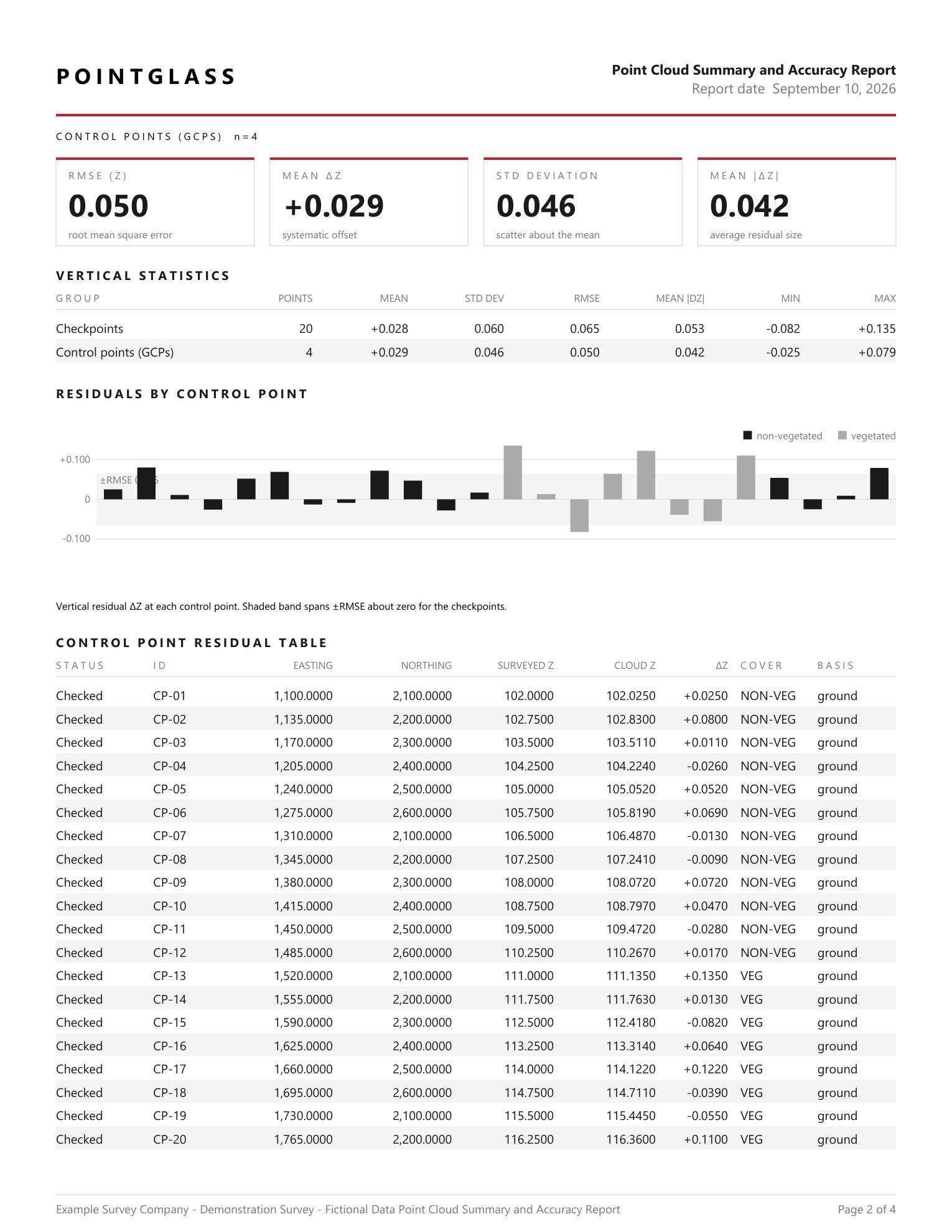

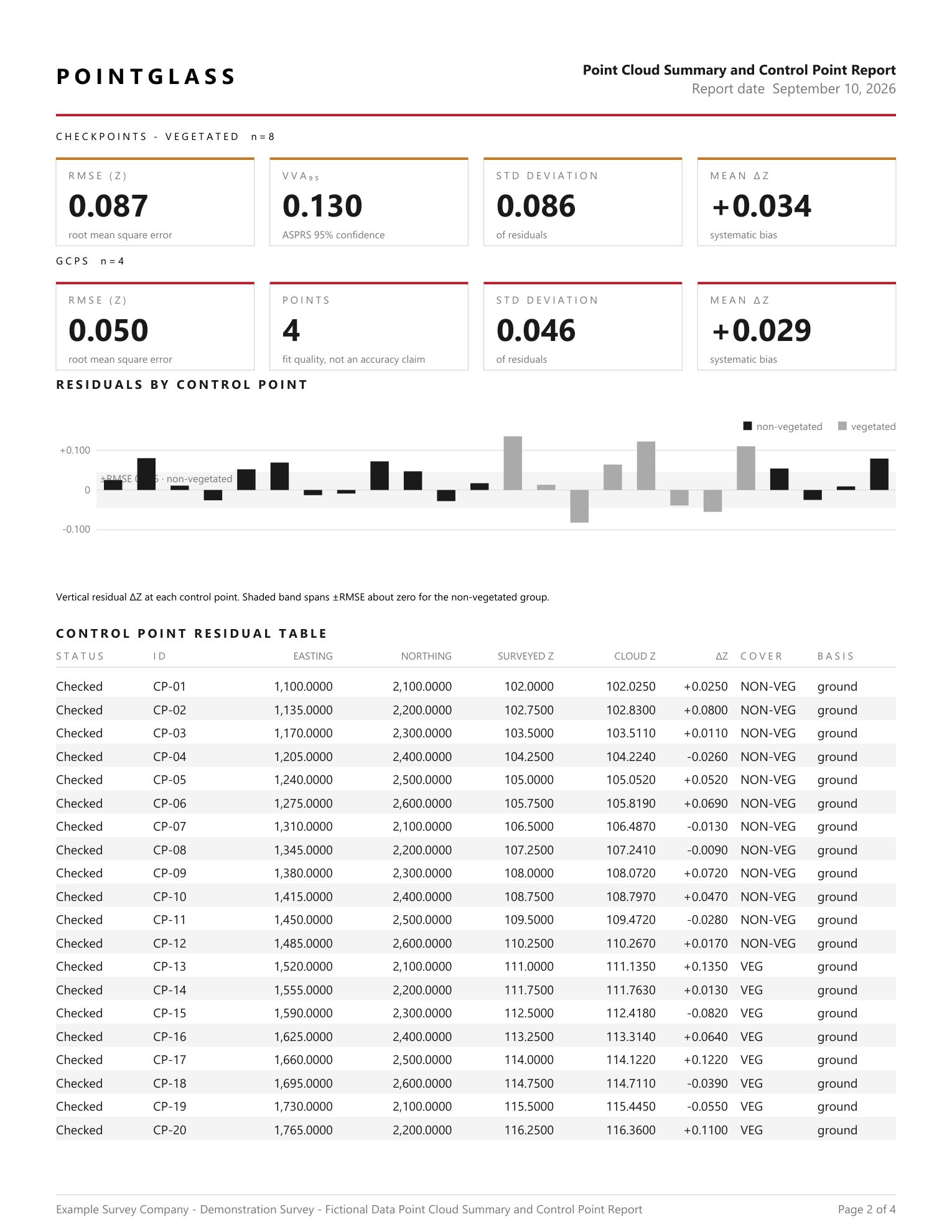

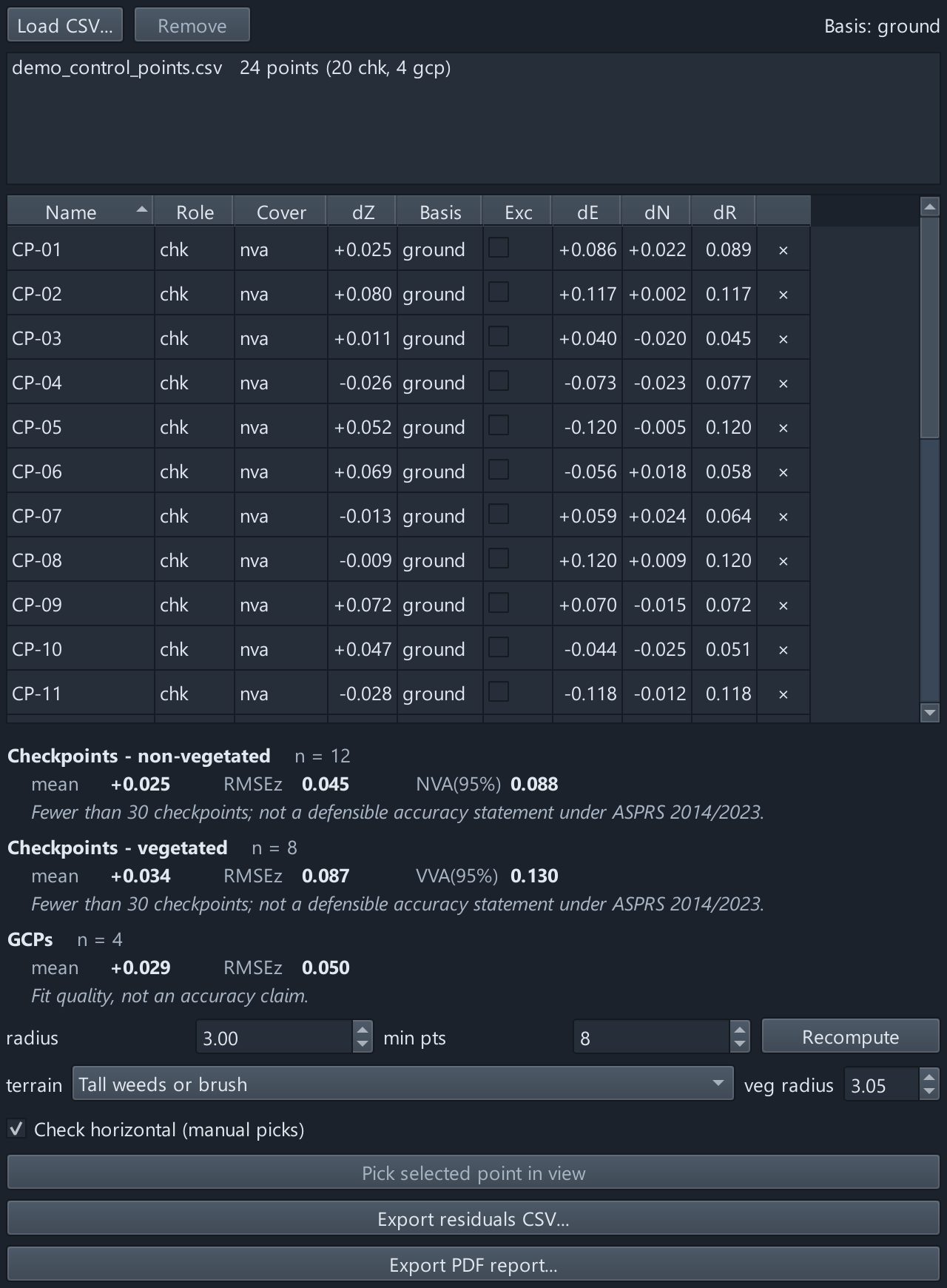

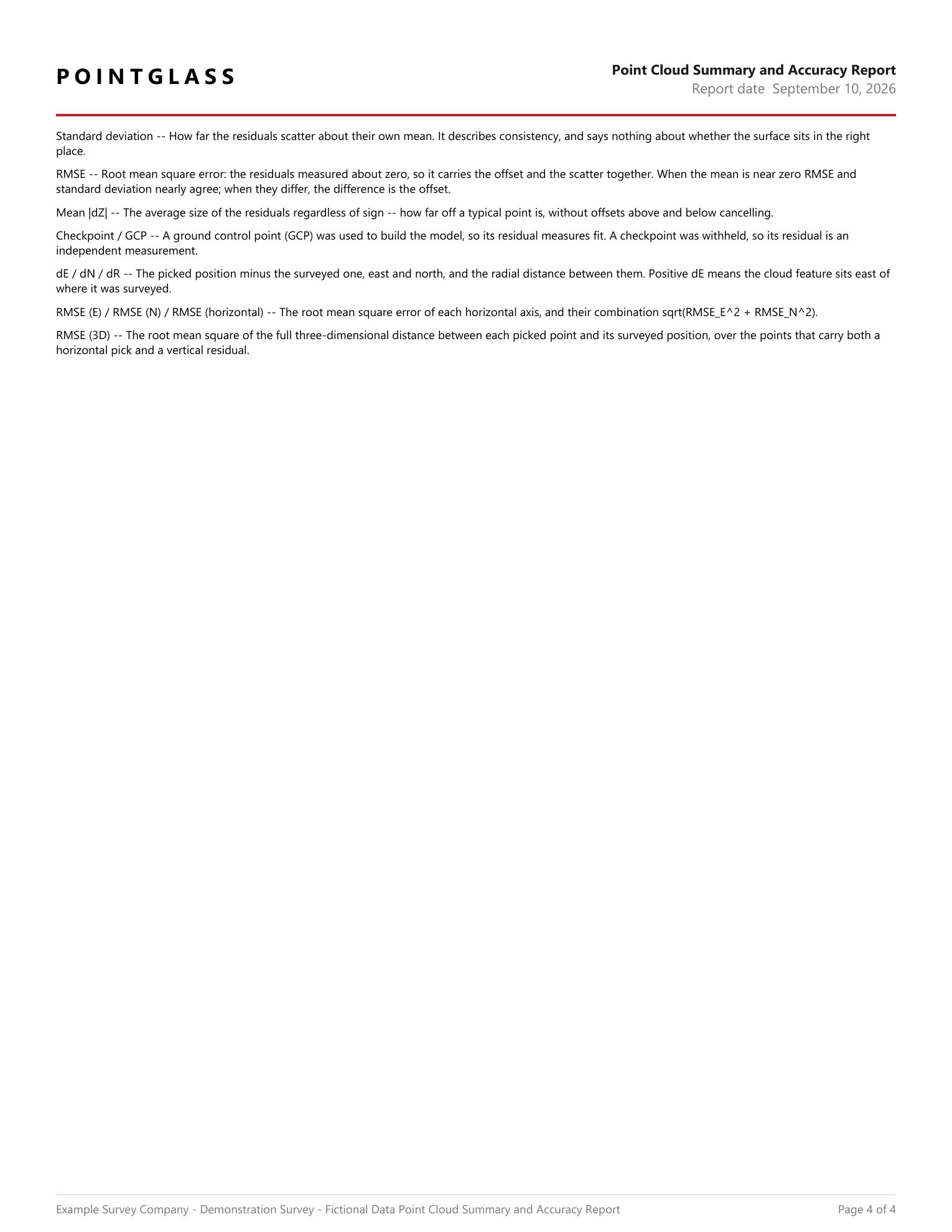

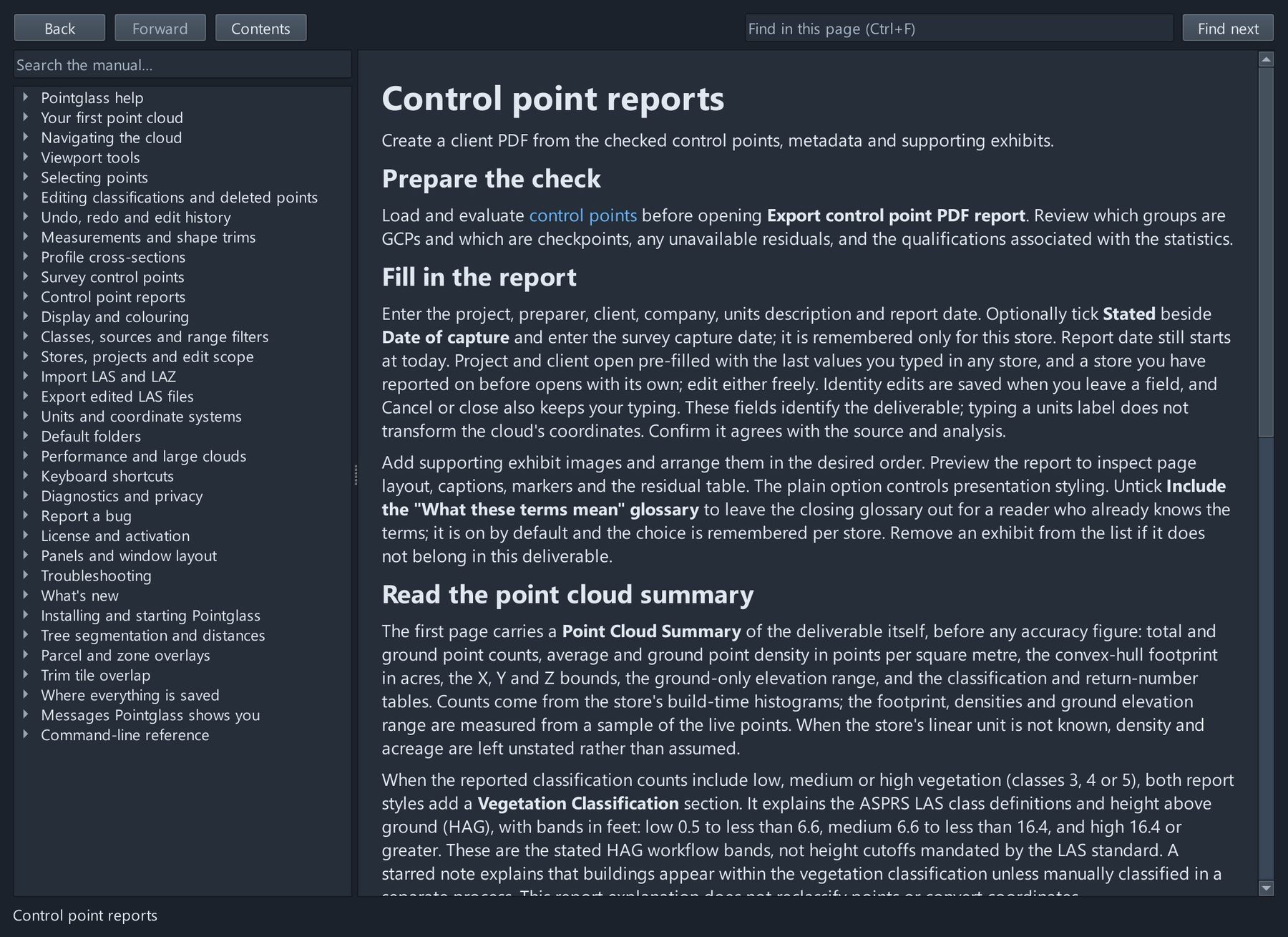

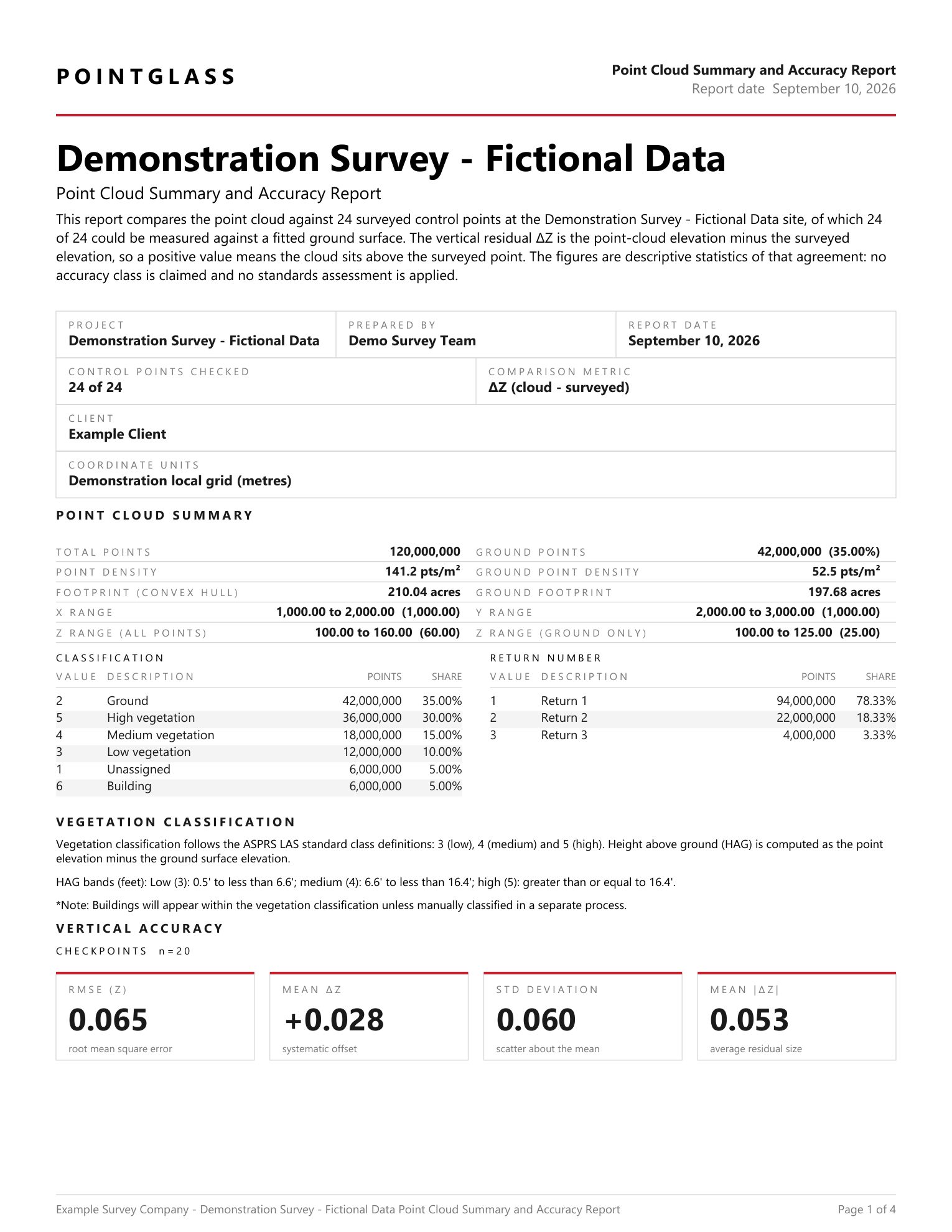

Fictional demonstration data: 24 controls, separate checkpoint/GCP groups and manual horizontal offsets.Report setup with fictional project, client and company labels. Choose standards or plain accuracy and configure report content.The built-in report preview, using entirely fictional demonstration data.Fictional example: horizontal components and mean shift remain visible; the 95% figure is withheld when the axis ratio is outside the supported range.Standards-style report, page 1: summary and first accuracy group. All identities, coordinates and measurements are fictional.Standards-style report, page 2: remaining groups, residual chart and table. All identities, coordinates and measurements are fictional.Standards-style report, page 3: horizontal offsets and qualifications. All identities, coordinates and measurements are fictional.Standards-style report, page 4: glossary. All identities, coordinates and measurements are fictional.Plain accuracy report, page 1: summary and first accuracy group. All identities, coordinates and measurements are fictional.Plain accuracy report, page 2: remaining groups, residual chart and table. All identities, coordinates and measurements are fictional.Plain accuracy report, page 3: horizontal offsets and qualifications. All identities, coordinates and measurements are fictional.Plain accuracy report, page 4: glossary. All identities, coordinates and measurements are fictional.
Settings, files and help

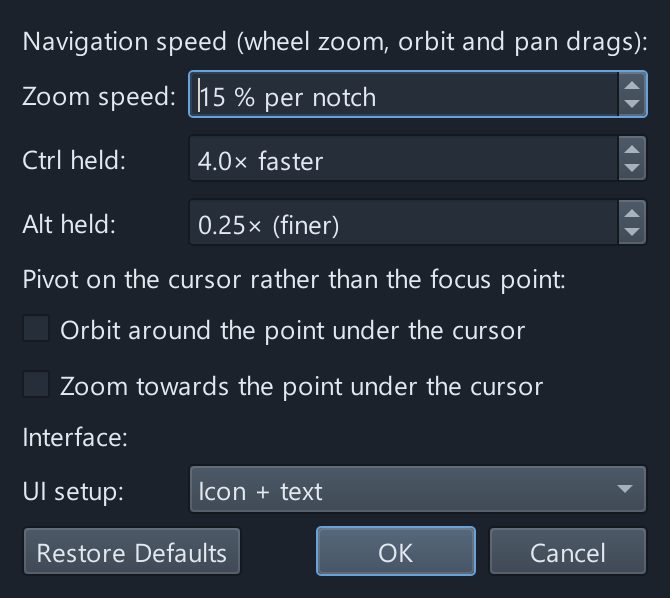

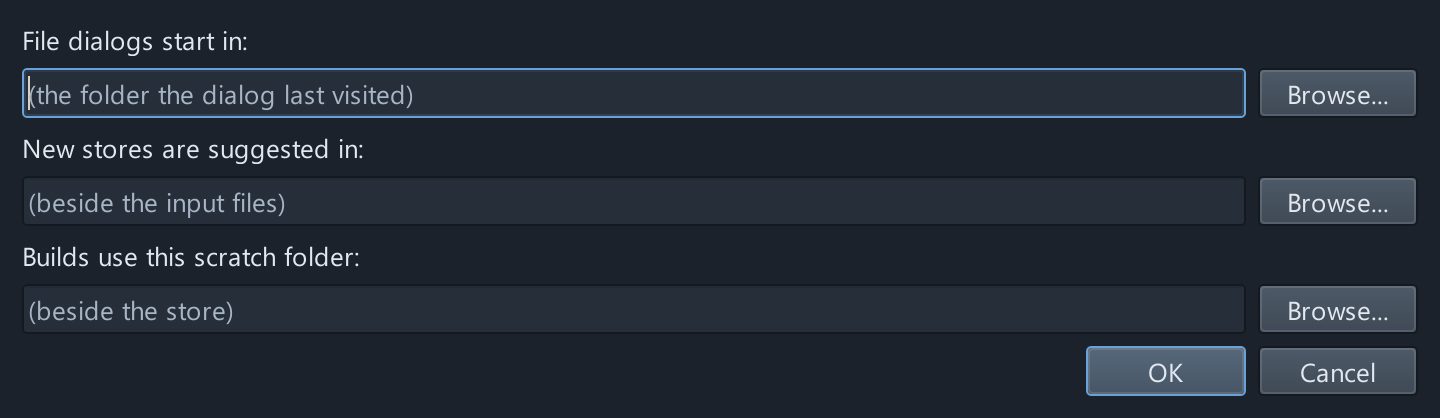

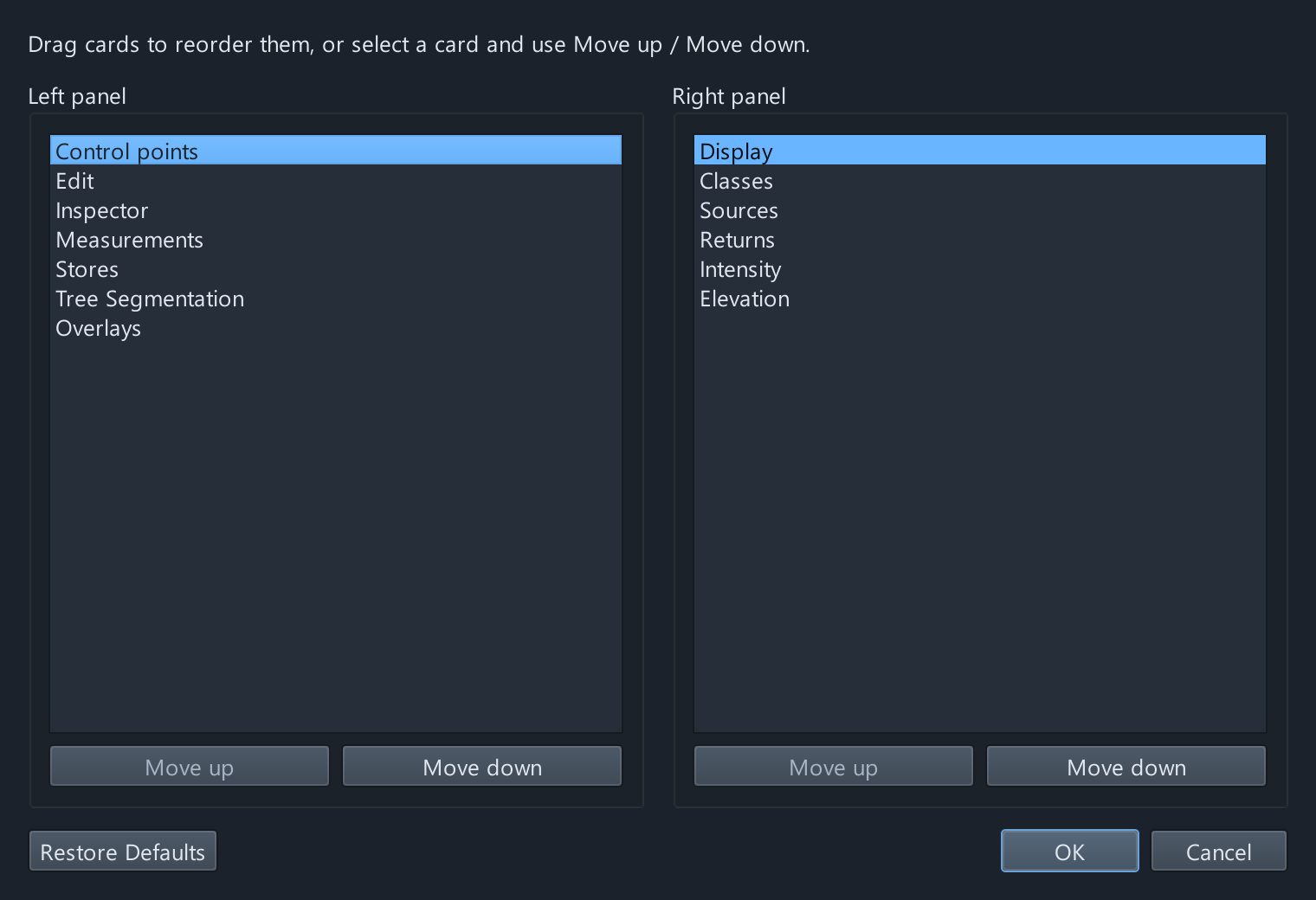

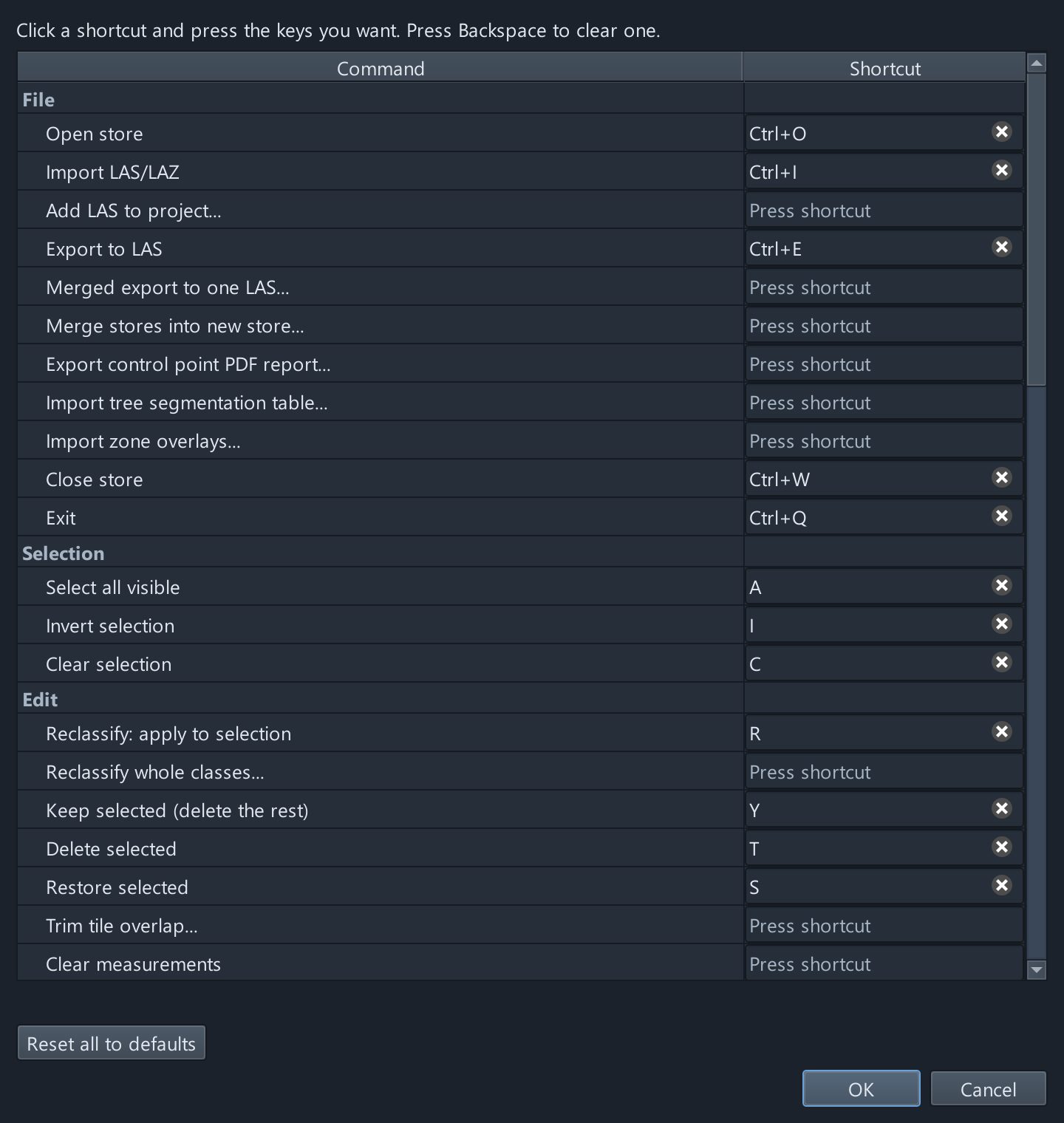

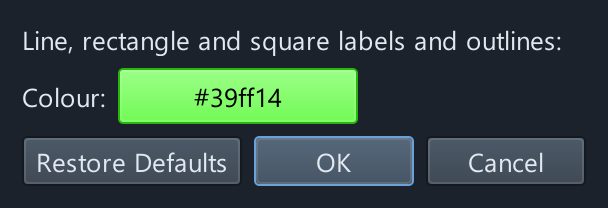

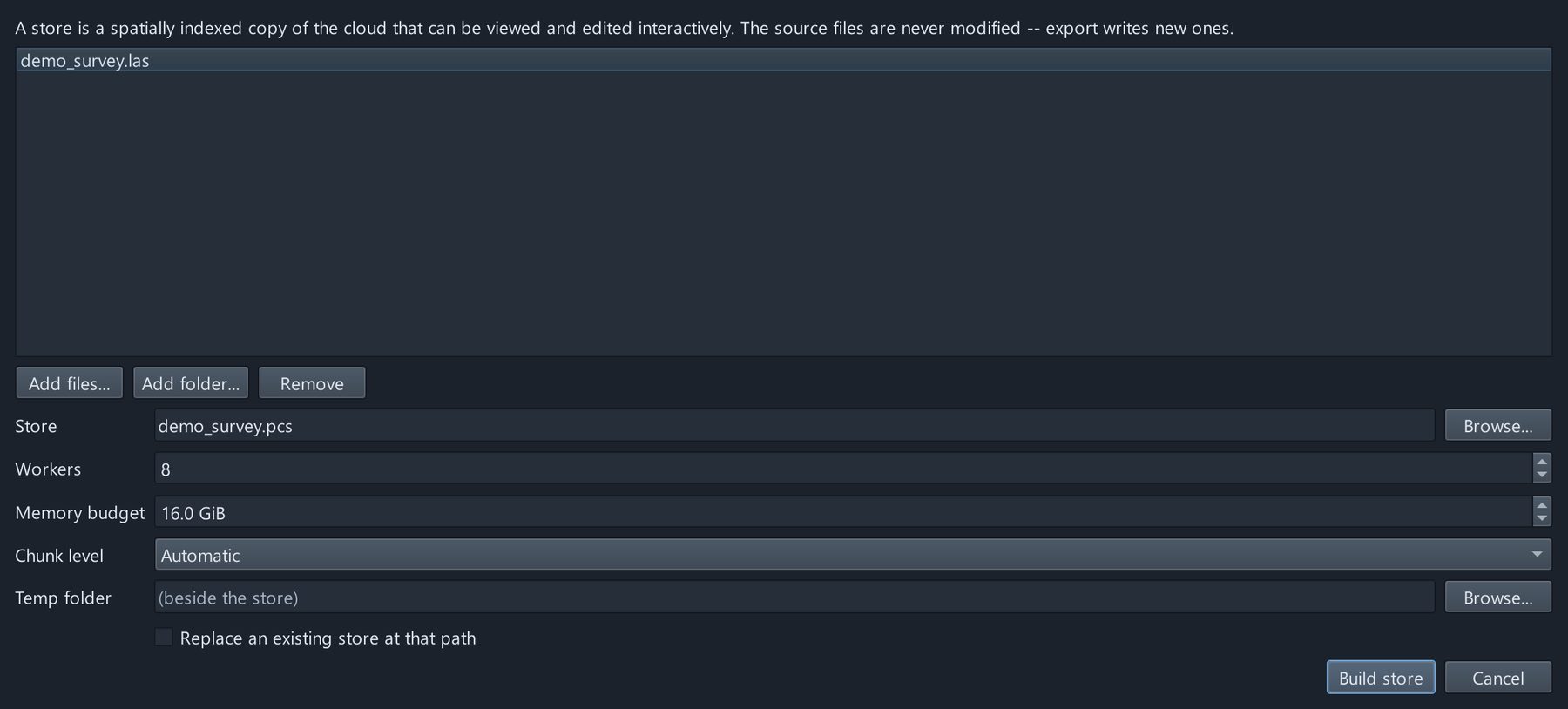

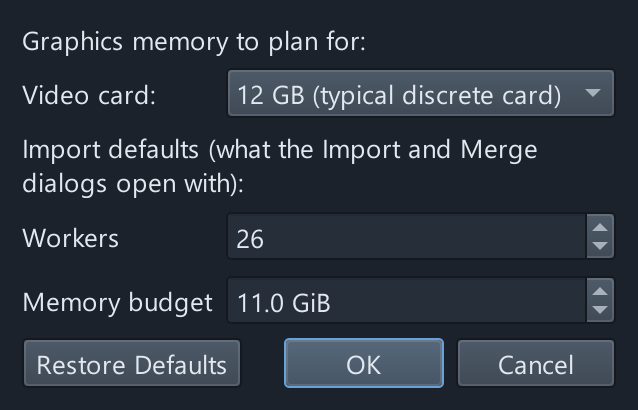

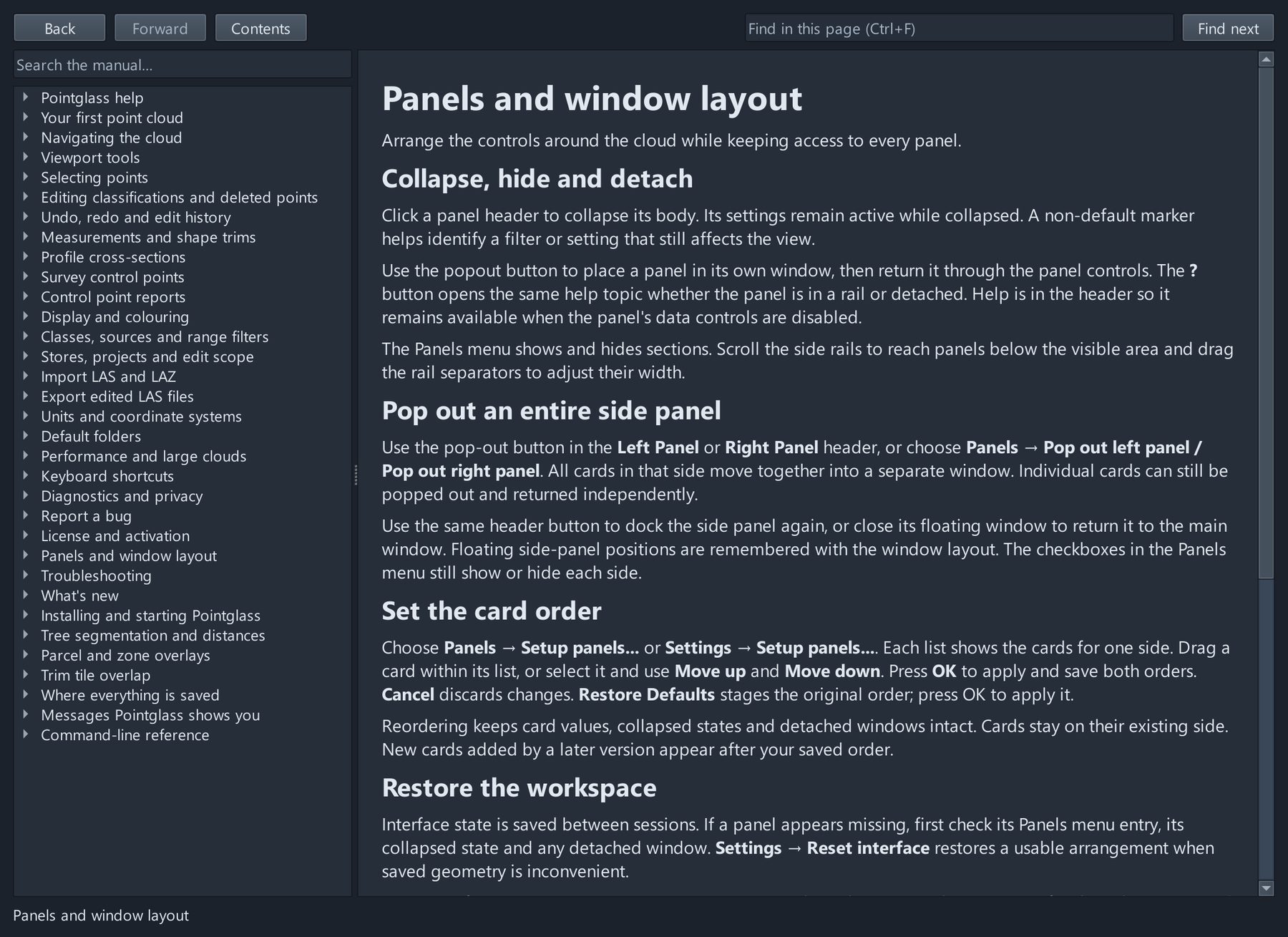

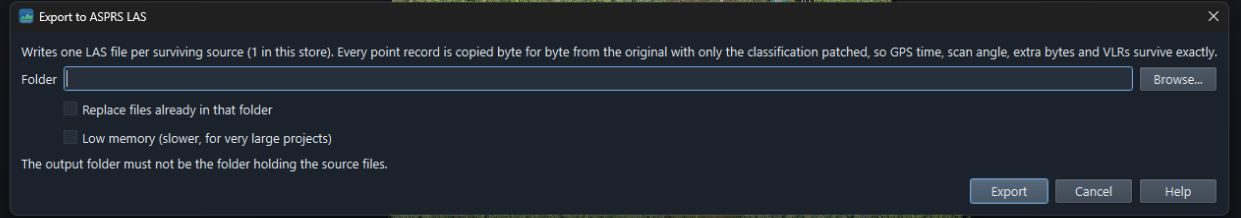

Set up panels: choose which panels appear, their side and their order.Keyboard shortcuts with the current default bindings; select a command to rebind it.Navigation and zoom: wheel speed, modifier multipliers and cursor-based camera behaviour.Performance settings: graphics-memory planning and default worker count and memory budget for imports.Measurement settings for annotation and dimension display.Folder settings for application defaults.Settings menu, including display units, panel setup and interface reset.Import LAS/LAZ: configure a new spatial store. Demo filenames are fictional.Export LAS: choose the output folder and export surviving source records.Offline help for the current interface and panel layout.Offline help for report setup and interpretation.
